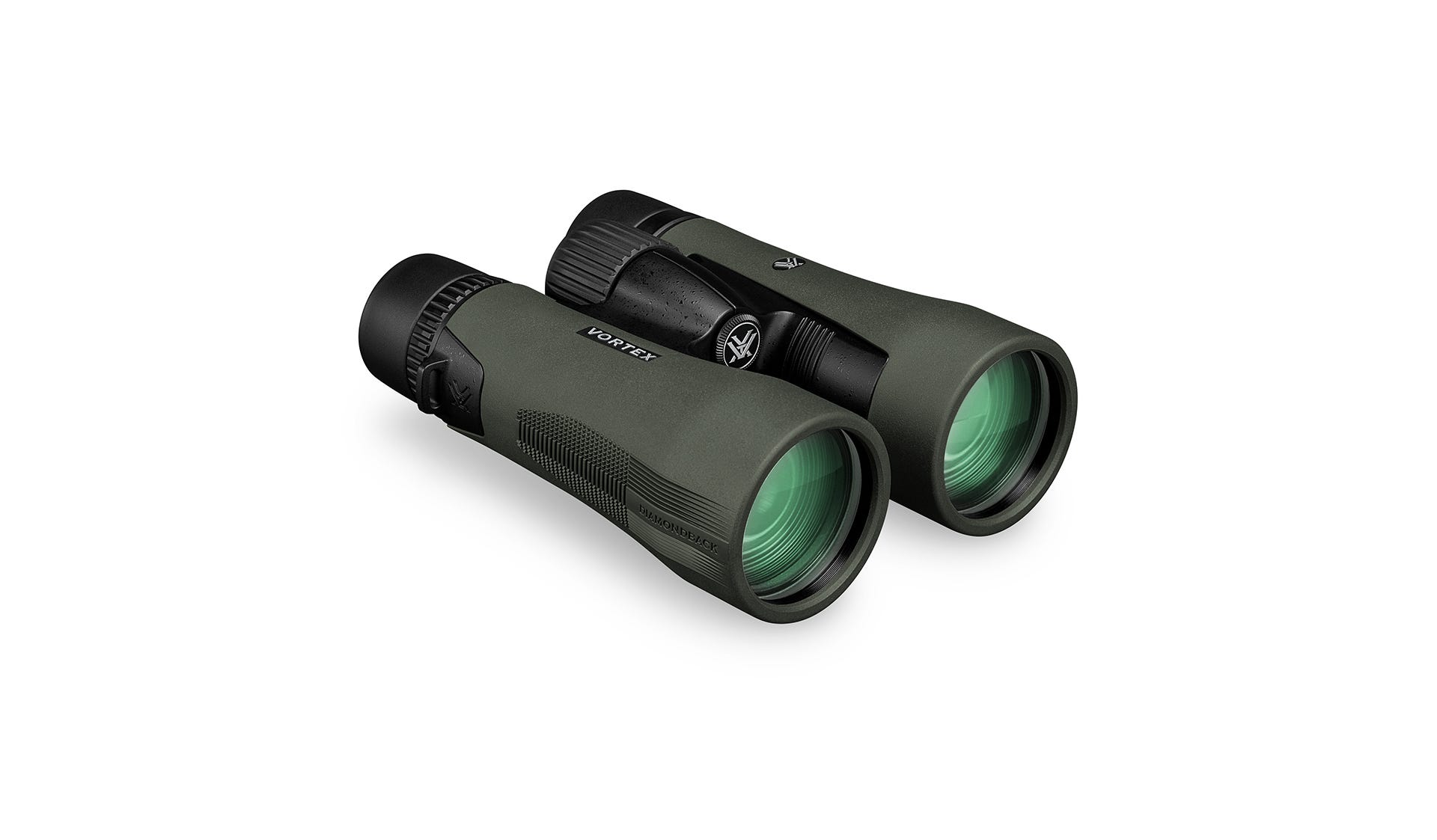

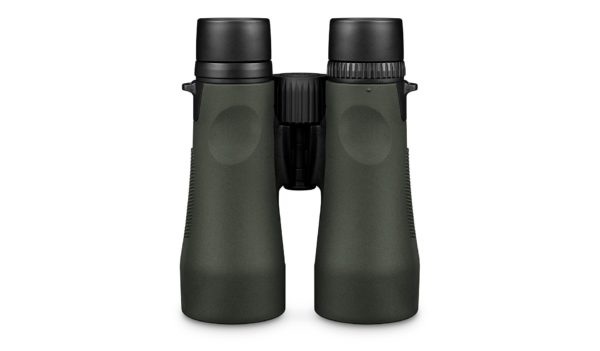

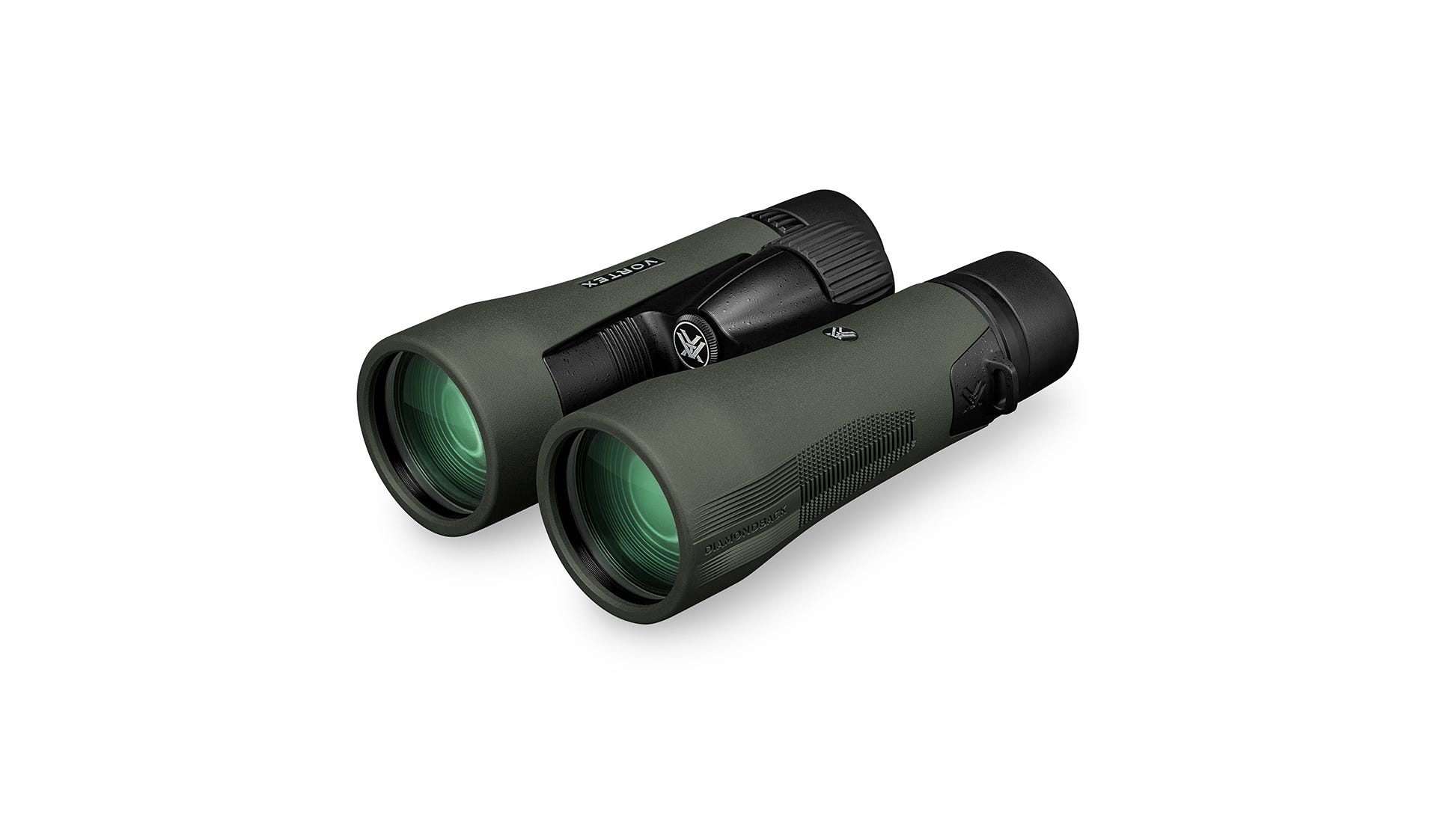

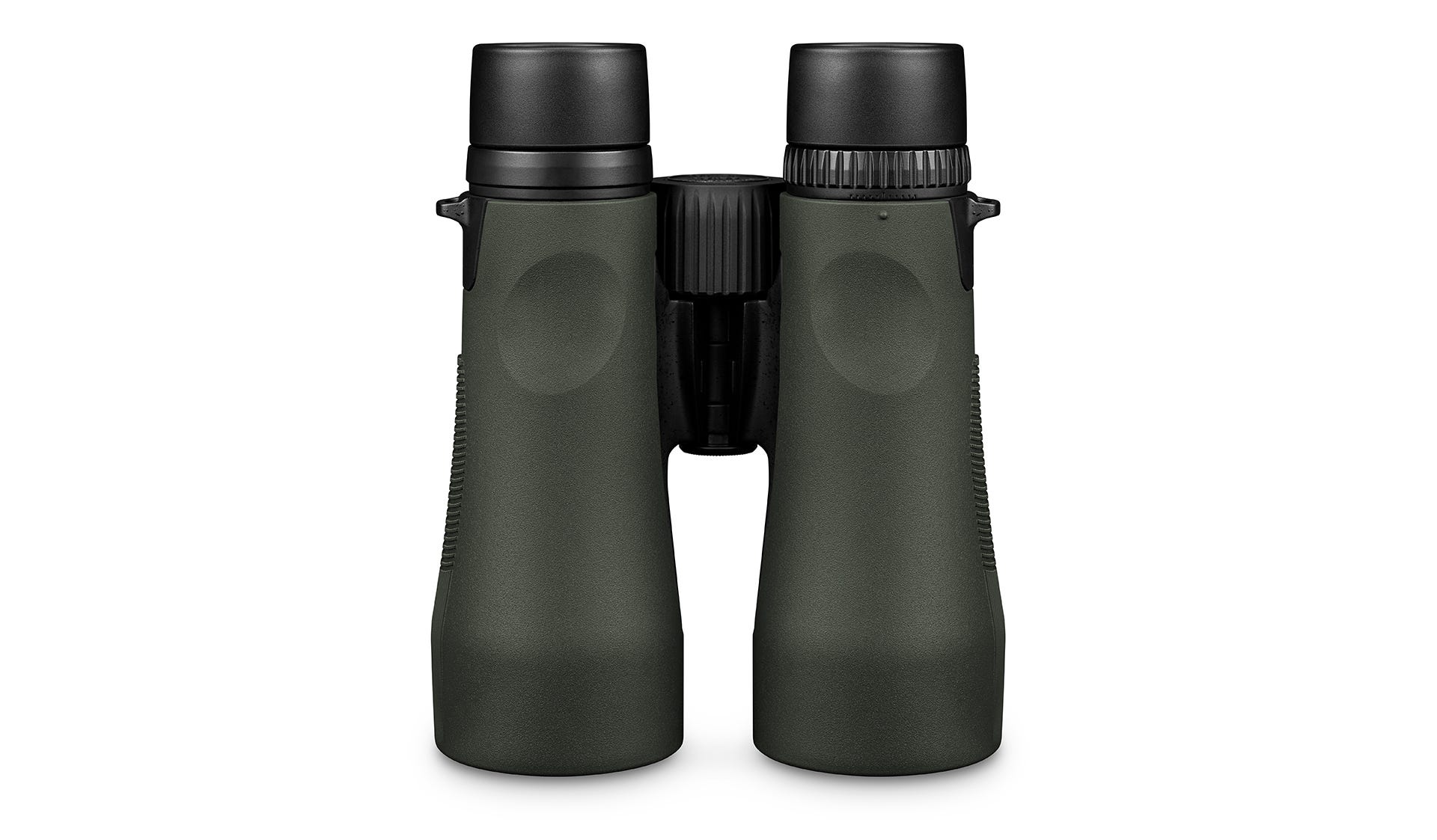

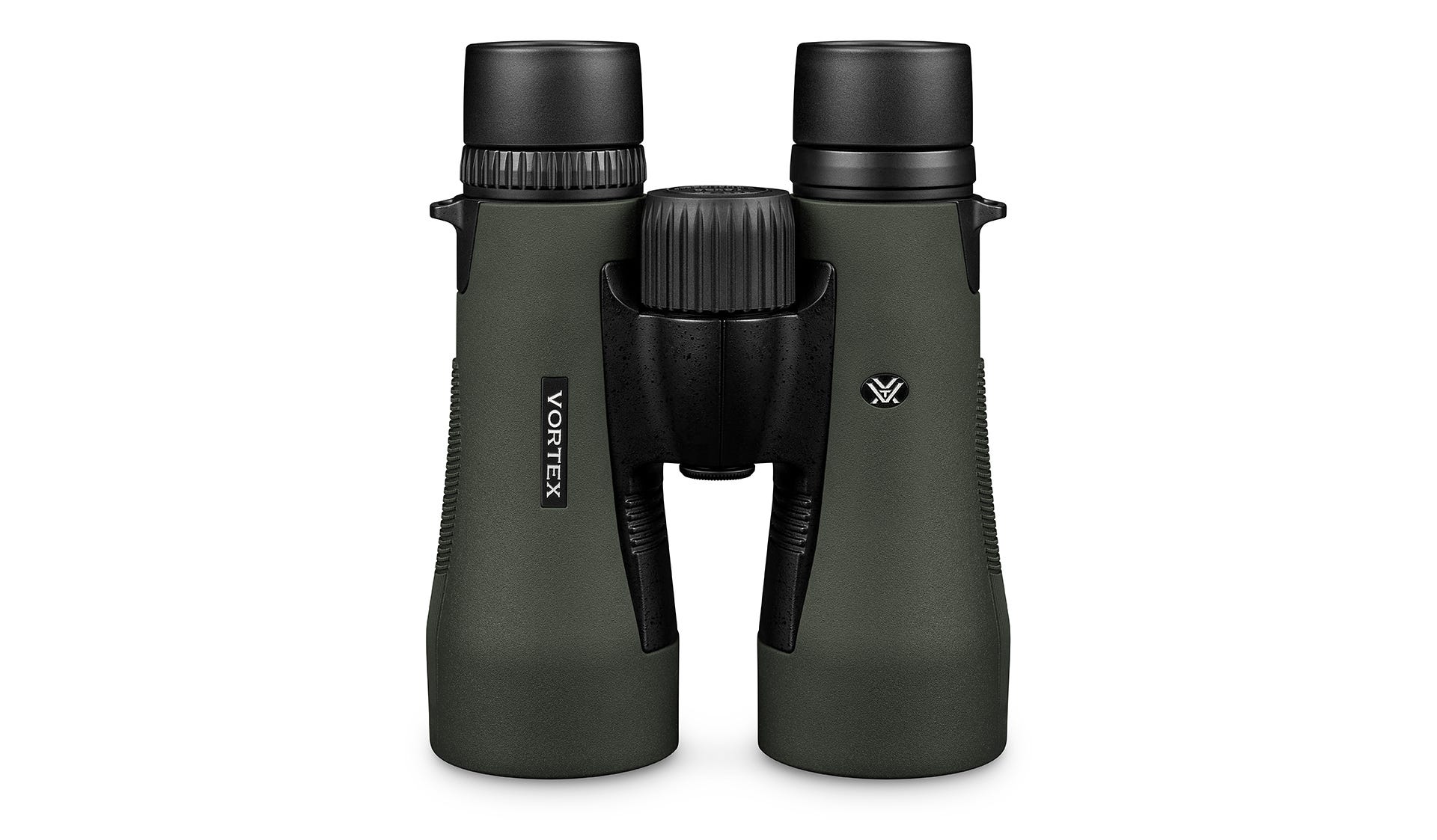

DB-217 Vortex Optics DIAMONDBACK® HD 12X50
$346.45
The Diamondback® HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
| Fully Multi-Coated | Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Dielectric Coating | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Roof Prism | Valued for greater durability and a more compact size. |
| Adjustable Eyecups | Twist up and down for comfortable viewing with or without eyeglasses. |
| Center Focus Wheel | Adjusts the focus of both binocular barrels at the same time. |
| Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
| Magnification | 12x |
| Objective Lens Diameter | 50 mm |
| Eye Relief | 14 mm |
| Exit Pupil | 4.2 mm |
| Linear Field of View | 271 feet/1000 yards |
| Angular Field of View | 5.2 degrees |
| Close Focus | 6 feet |
| Interpupillary Distance | 60-75 mm |
| Height | 6.4 inches |
| Width | 5.3 inches |
| Weight | 28.9 oz |
| Product Manual (PDF) | Download |
| Parts Diagram (PDF) | Download |
The Diamondback® HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck straps.
