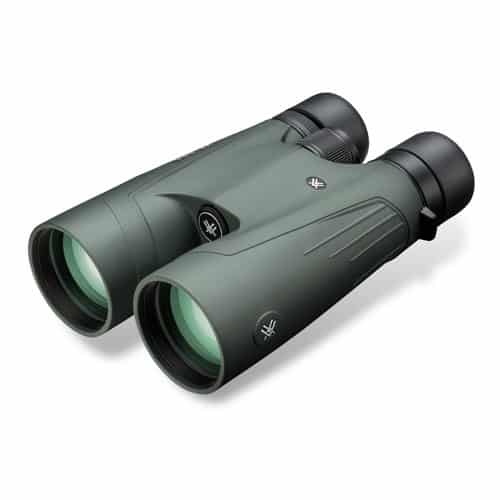

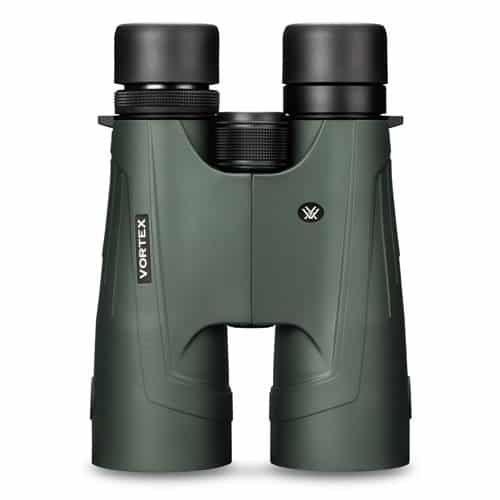

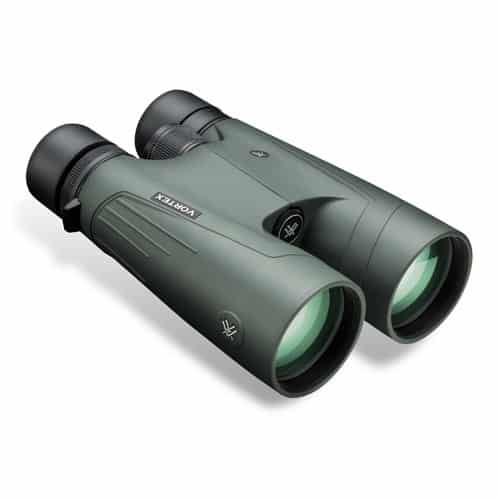

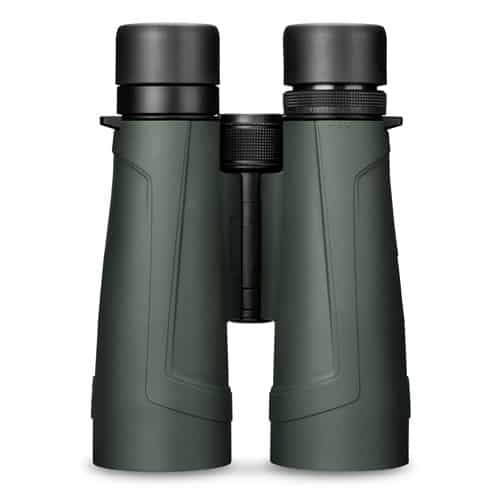

KAI-5603 Vortex Optics KAIBAB HD 20X56 Roof Prism Binocular
$1,759.95
The ultimate long-range binocular, the Kaibab HD leaves little to the imagination. Every detail, even at extreme long ranges, is revealed in vivid high-definition color. Every speck is translated into opportunity. Pushing the performance envelope, the Kaibab HD offers the power and optical features you need to dissect the landscape in search of big game. Superior images, stunning resolution and, of course, incredible power. When it comes to "do-it-yourself or else", the Kaibab HD delivers.
Features:
Optical Features:
| APO System | Apochromatic optical system combines with HD glass to provide unmatched color sharpness. |
| HD Lens Elements | Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. |
| XR™Plus Fully Multi-Coated | Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness. |
| Dielectric Prism Coatings | Multi-layer prism coatings provide bright, clear, color-accurate images. |
| Plasma Tech | Cutting edge application process provides unparalleled coating durability and performance. |
| Phase Correction | Coating on roof prism models enhances resolution and contrast. |
Construction Features
| Roof Prism | Valued for greater durability and a more compact size. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Rubber Armor | Provides a secure, non-slip grip, and durable external protection. |
| 56 mm Lenses | Maximize low light performance. |
Convinience Features:
| Multi-Position Eyecups | Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses. |
| Center Focus Wheel | Adjusts the focus of both binocular barrels at the same time. |
| Locking Diopter | Adjusts for differences in a user's eyes. Located on right eyepiece. |
| Tripod Adaptable | Compatible with a tripod adapter, allowing use on a tripod or car window mount. |
Specifications:
| Magnification | 20 x |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 15 mm |
| Exit Pupil | 2.8 mm |
| Linear Field of View | 168 feet/1000 yards |
| Angular Field of View | 3.2 degrees |
| Close Focus | 23 feet |
| Interpupillary Distance | 60-76 mm |
| Height | 7.7 inches |
| Width | 5.7 inches |
| Weight | 43.5 ounces |
| Product Manual (PDF) | Download |
