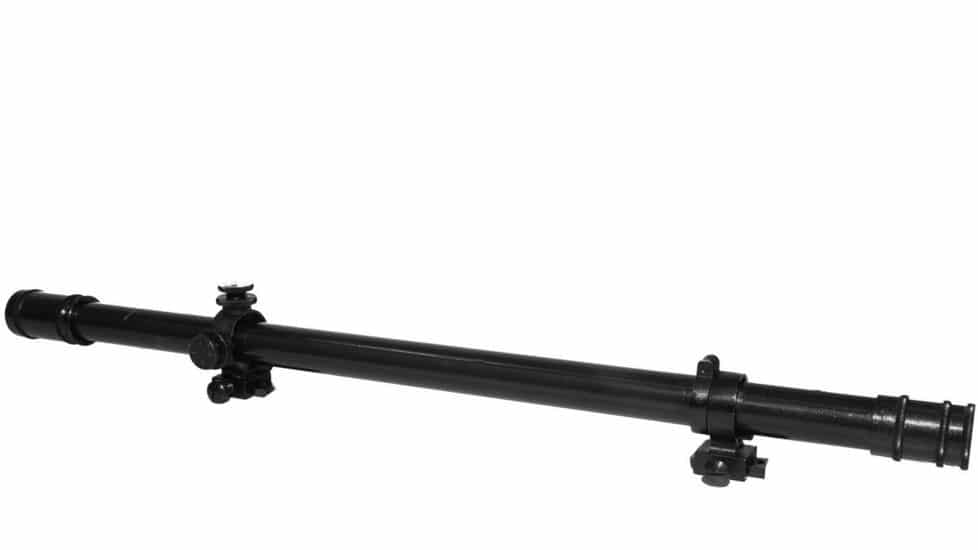

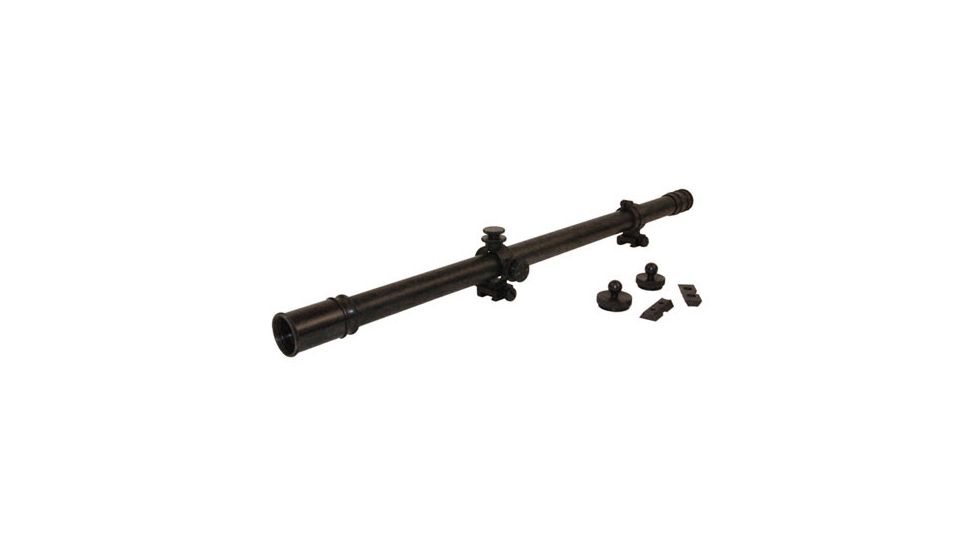

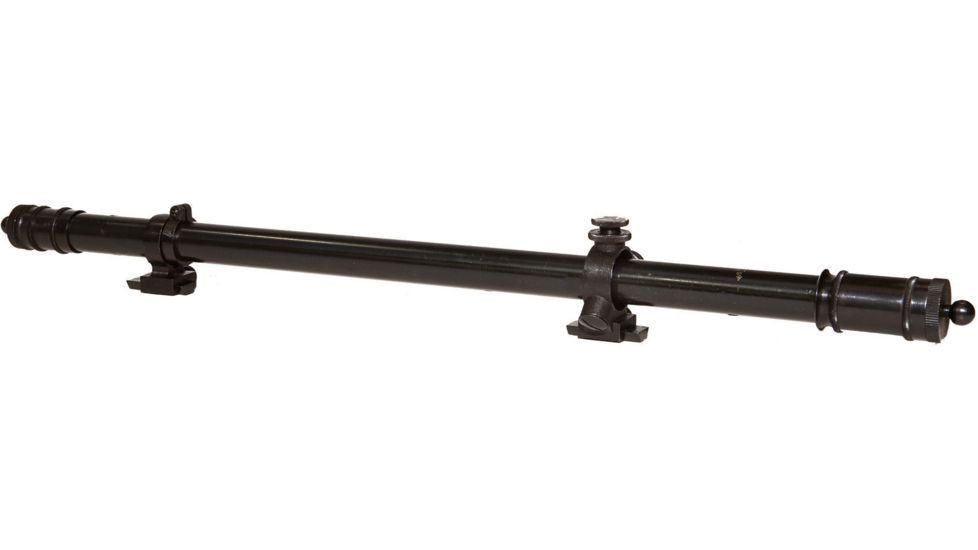

The Leatherwood William Malcolm 3x16mm Short Telescopic Rifle Sight M334151 was designed to be the perfect scope for almost any shooter. Treated with DiamondTuff14™, the exterior air-glass lenses on the Leatherwood Leatherwood/Hi-Lux 3x Short Telescopic Sight ensure optimal light transmission for enhanced visibility in low light situations.
$360.00
William Malcolm is the oldest name in scope manufacturing, originally established in 1855. Malcolm Optics has stepped back in the time to redesign this historic line of telescopic rifle sights, providing today’s shooter a period correct scope with modern optics.

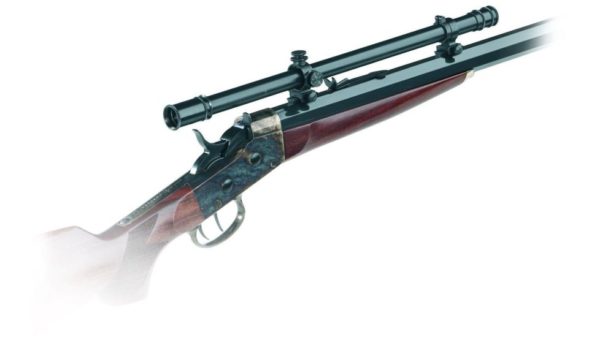

Both the 3X 17″ and 6X 18″ Malcolm scopes are ideal for many of the single-shot and lever-action cartridge rifles produced during the late 1880s and 1890s. An ever growing selection of the mounts and accessories now include the side mounts for various sharps rifle models, Winchester Model 1885 rifle, H&R “ Buffalo Classic”, Winchester ’73, ’76, ’92 & ‘94 models, Henry “Golden Boy” .22, Marlin ’94 / ’95 models, and others.
Every glass lens in the Malcolm 3X short scope is fully multi-coated. The scope is also nitrogen purged and sealed. The Malcolm 3X and 6X short scope are among the finest quality reproduction vintage riflescopes available today!
| Objective Lens Diameter: | 17 mm |
| Magnification: | 3 x |

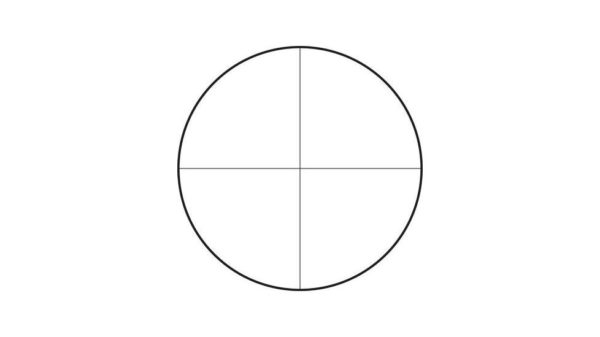

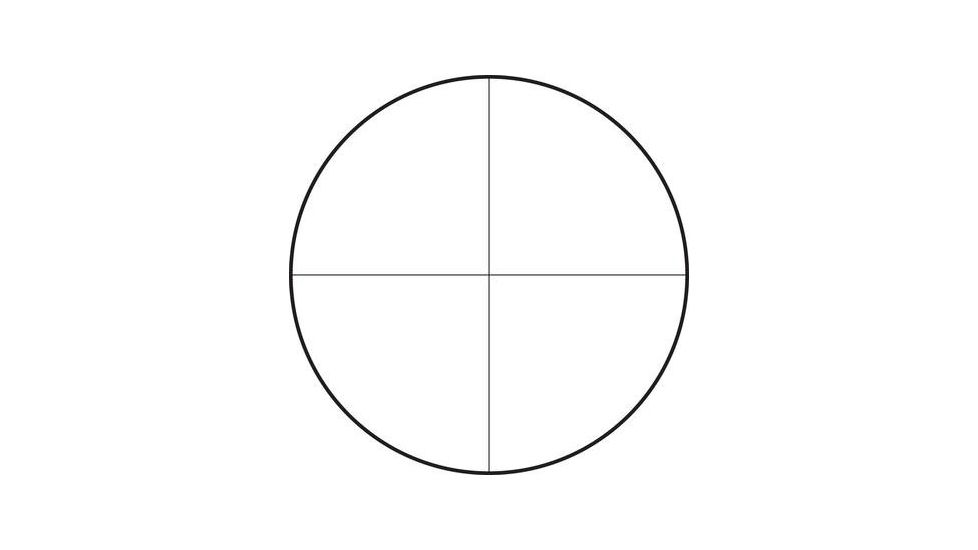

| Reticle: | Fine Cross |
| Tube Diameter: | 0.75 in |
| Reticle Focal Plane: | Second Focal Plane (SFP) |
| Exit Pupil: | 5.8 mm |
| Field of View, Linear: | 15 ft at 100 yds |
| Eye Relief: | 4.5 in |
| Diopter Adjustment Range: | -3 - 3 dpt |
| Color: | Black |
| Weight: | 17.5 oz |
| Fabric/Material: | Steel |
| Length: | 17 in |
| Width: | 2 in |
| Height: | 2 in |
| Illumination Type: | Non-Illuminated |
| Adjustment Type: | MOA |
| Parallax: | 3.33 yds to infinity |
| Focus Range: | 100 yds |
| Lens Material: | Glass |
| Optical Coating: | Fully Multi-Coated, Diamond Tuff14 |
| Operating Temperature: | -20 - 60 Celsius |
| Weather Resistance: | Yes |
| Water Resistance Level: | IP64 |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Finish: | Matte |
| Included Accessories: | Mounts/M334MT, Bases/M050UB-D, Front/Rear Screw-In Lens Covers, Lock Ring |
| Magnification Type: | Fixed |
