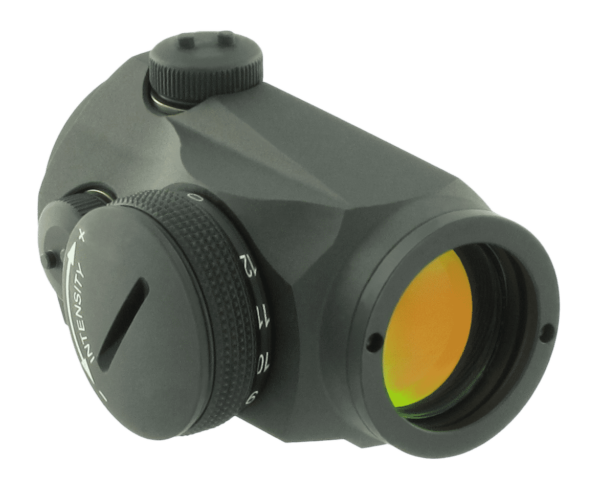

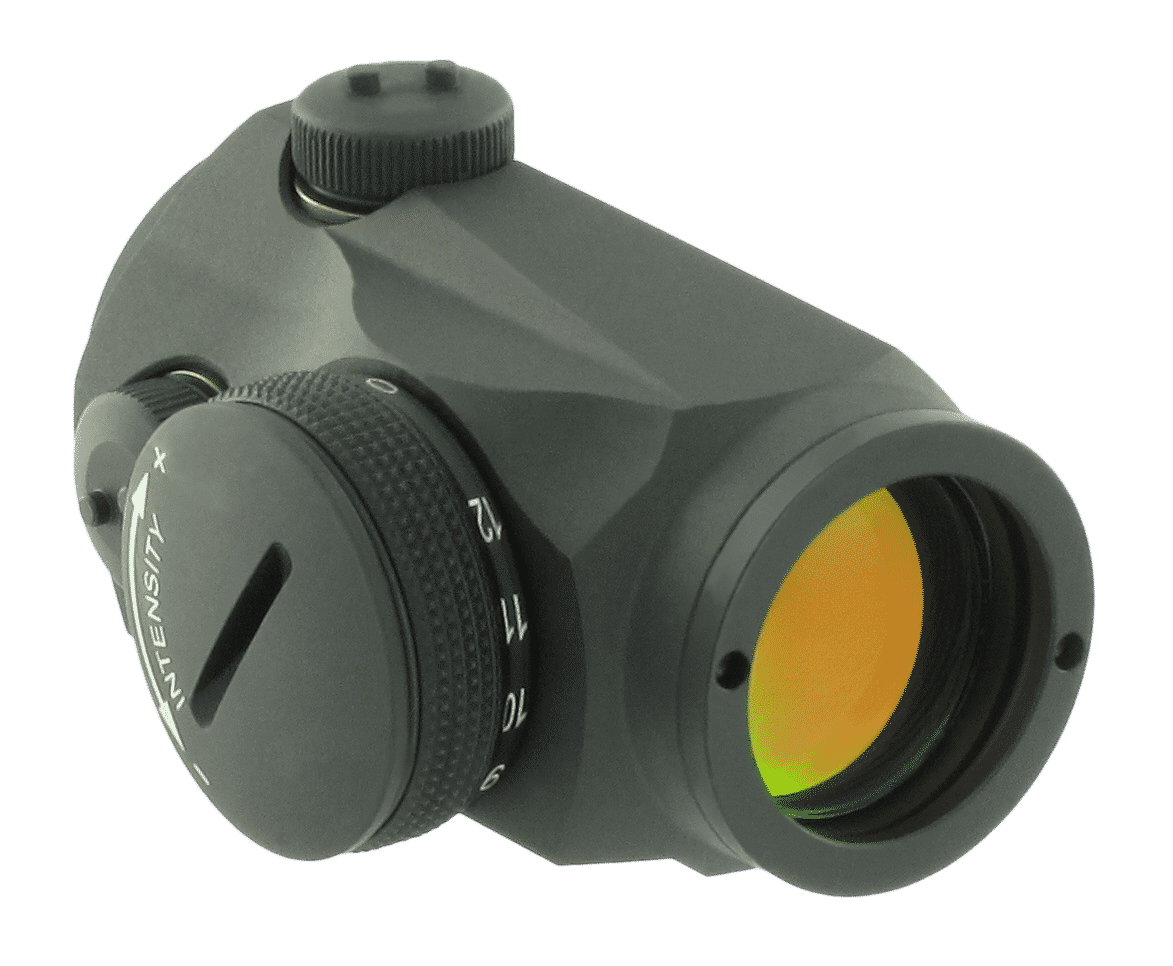

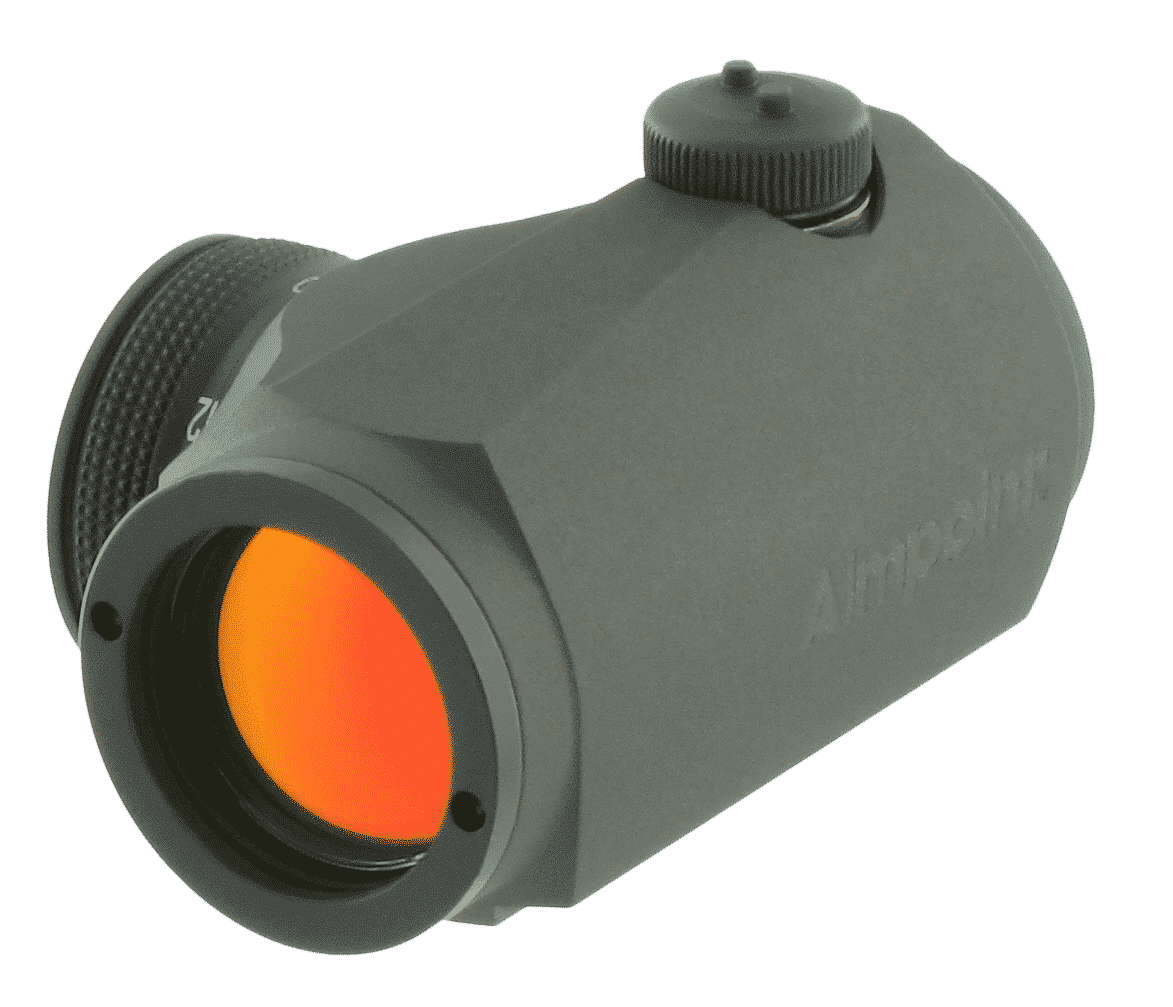

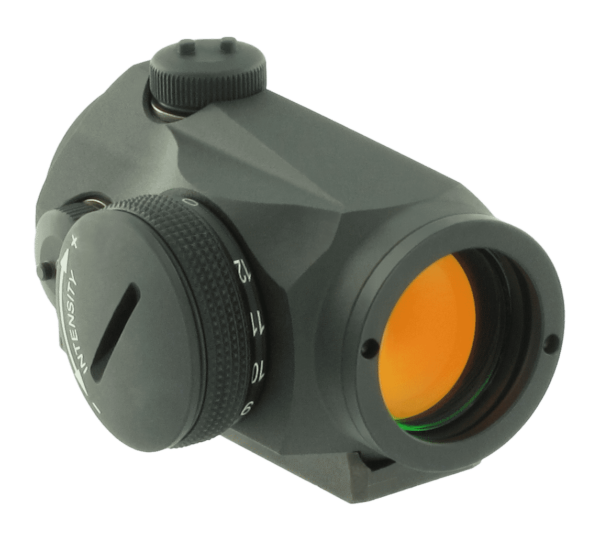

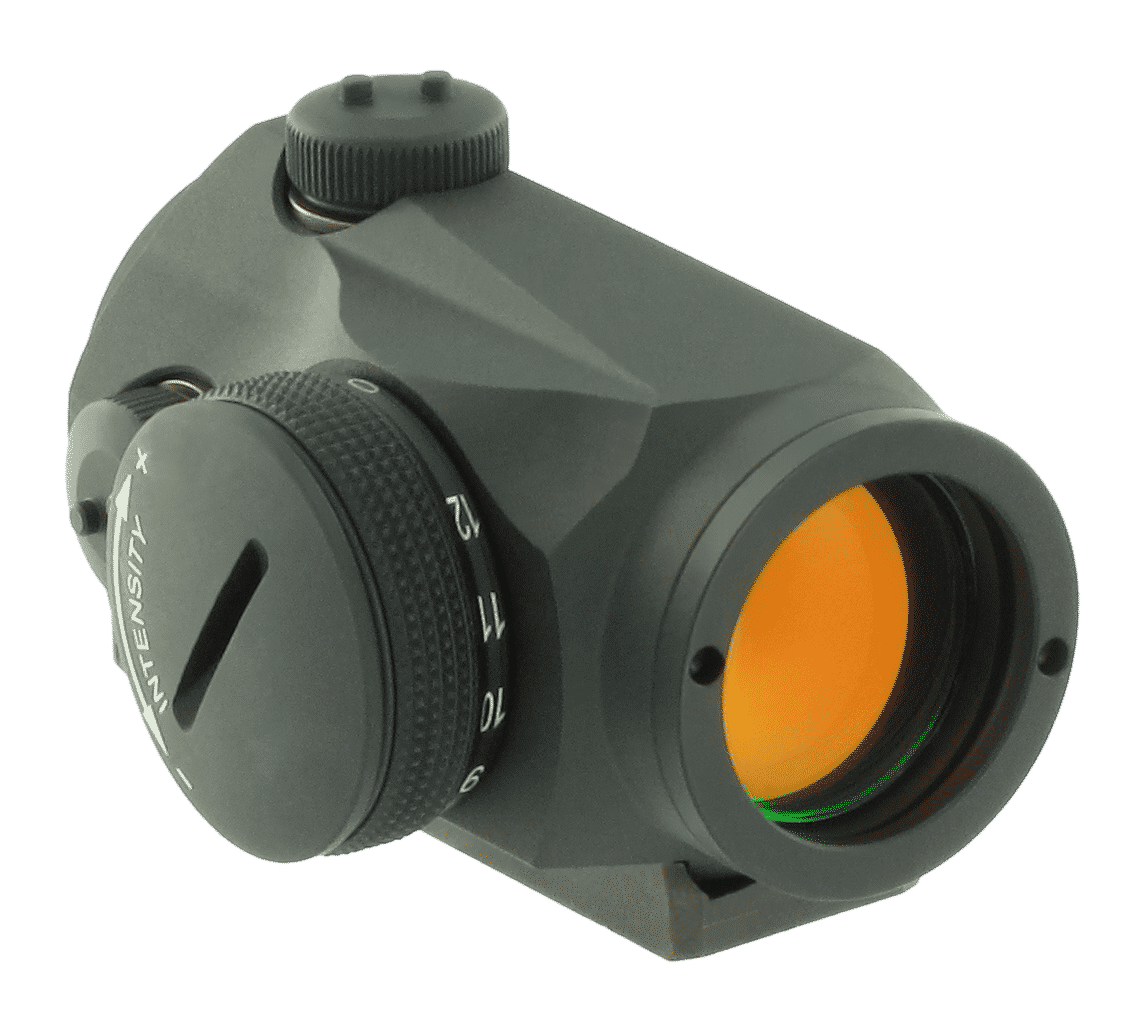

Micro T-1 Aimpoint 2MOA Sight W/ Picatinny Mount and Bikini Rubber Lens Covers

Description:

No matter what your mission, the size and weight of your equipment is a critical factor. With the Aimpoint® Micro T-1, Aimpoint has introduced an aiming system that provides the performance of our full-sized sights in the smallest package possible.

SKU: 12417 Category:
Price:

$753.45

Out of stock

Description
Specifications

Overview:
No matter what your mission, the size and weight of your equipment is a critical factor. With the Aimpoint® Micro T-1,
Aimpoint has introduced an aiming system that provides the performance of our full-sized sights in the smallest package possible.
Since its introduction in 2007, the Aimpoint® Micro T-1 has become very popular worldwide due to its size, light weight and robust build quality.

Complete and Ready to Mount:

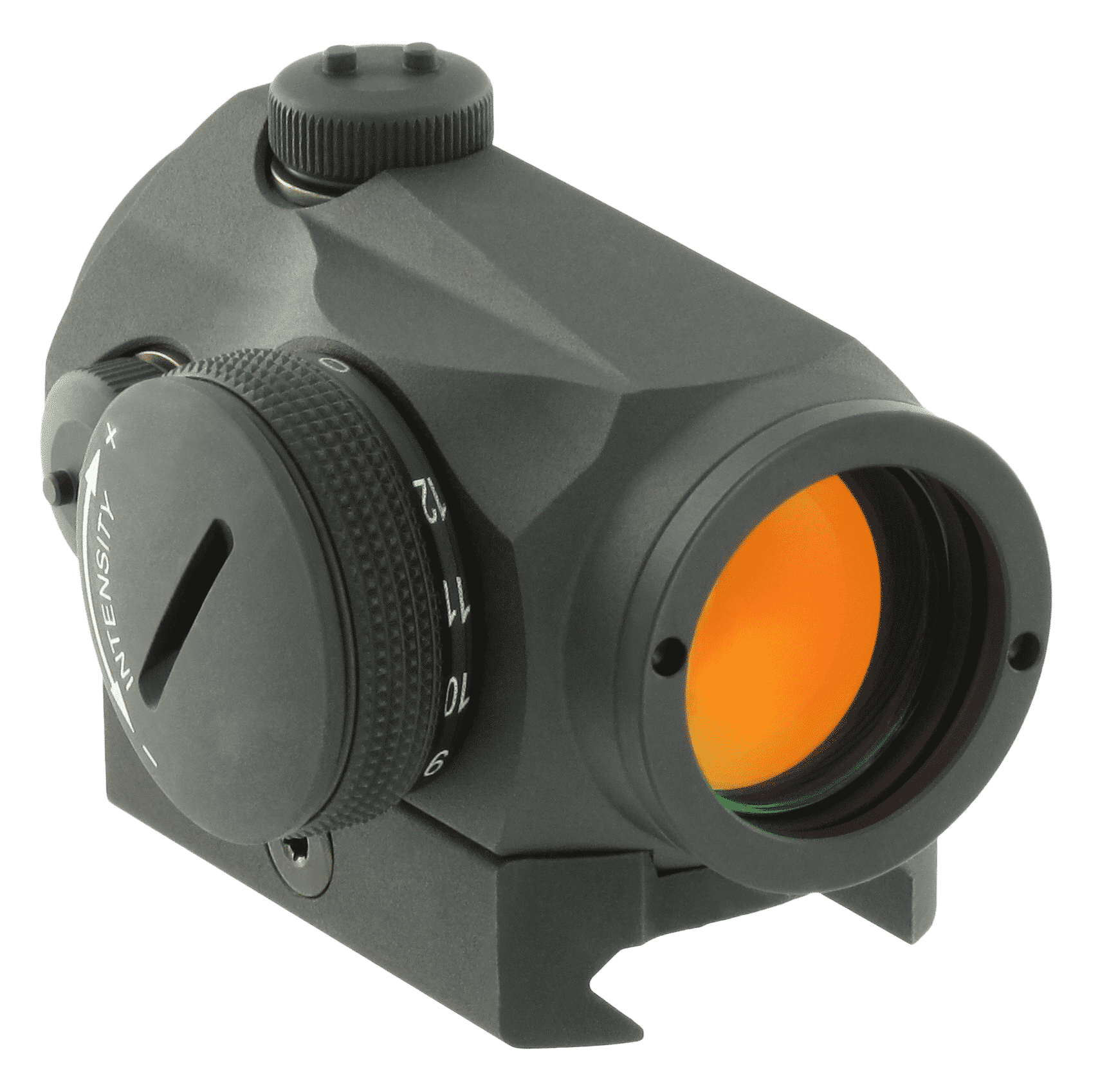

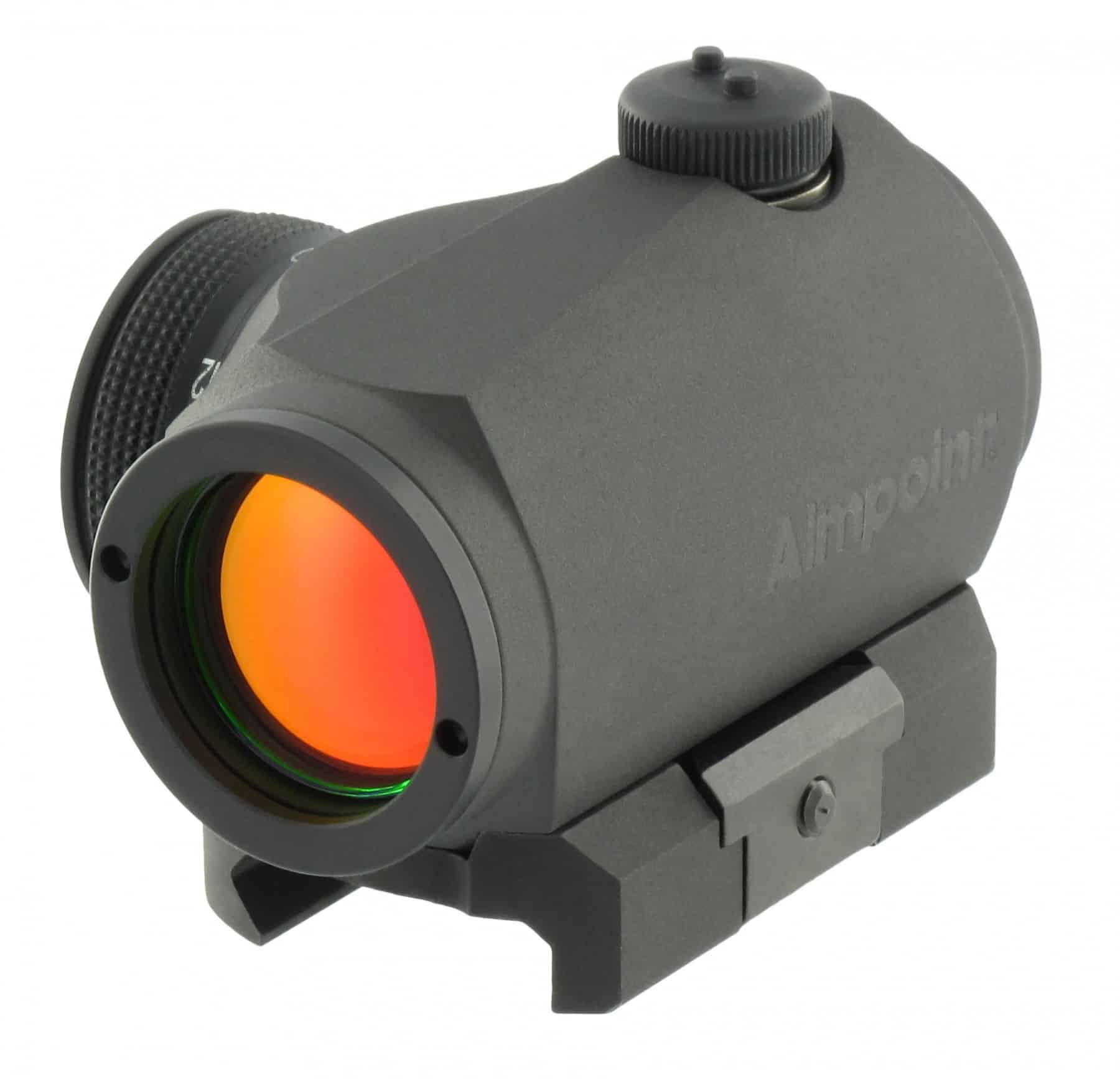

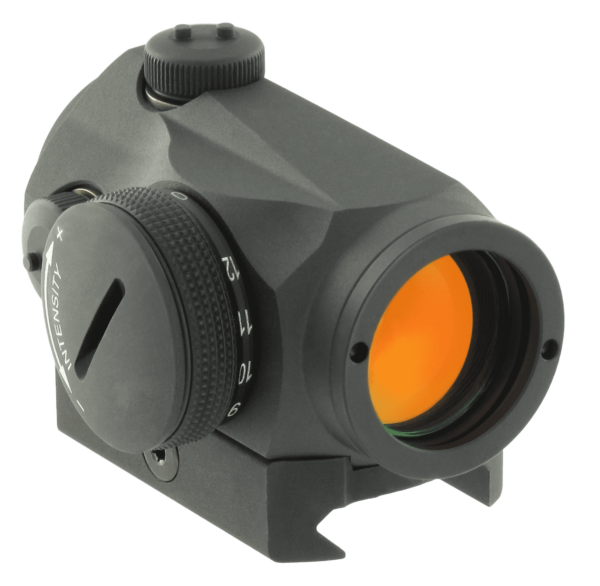

The standard configuration of the Aimpoint® Micro T-1 contains the sight, a Picatinny mount and bikini rubber lens covers.

Unique Features:

  • Ideal for rifles, carbines, shotguns, submachine guns, and handguns
  • Weight 3.7 oz. (105g) including mount, sight only 3.0 oz. (84g)
  • 1X (non-magnifying) parallax free optic
  • Compatible will all generations of Night Vision Devices (NVD)
  • 4 night vision compatible settings and 8 daylight settings – one extra bright for use with laser protection glasses or in bright desert sunlight
  • Integral Picatinny-style base allows easy attachment to any rail
  • Patent pending mount is keyed to the sight body to absorb recoil
  • New ACET technology allows 50,000 hours (over 5 years) of constant operation with one battery
  • Available in 2 dot sizes (2 and 4 MOA)
  • Hard anodized non-reflective finish
  • Submersible to 80 feet (25 meters)
  • Precision adjustments for windage and elevation: top of protective caps fits into holes on adjustment screws – no other tool required
  • Use as a standalone sight or piggybacked on larger magnifying, thermal, or night vision optics

Technical Specifications:

General Specifications:
Art.No: 12417 (2MOA), 11830 (4MOA)

Optical Specifications:

  • Operating principle: Reflex
  • Collimator sight with LED
  • Optical magnification: 1x
  • Aiming dot size: 2 or 4 MOA
  • Dot intensity: Visible against a
  • background luminance of 0,1 to 55 000lx
  • Optical signature: No optical
  • signature is visible at 10 meter distance, front side, on appropriate settings with NVD 3
  • Dot color: Peak Wavelength: 650 ± 10nm
  • NVD compatible: Yes
  • Optical coating: Anti-reflex, all
  • surfaces and multi-layer. NVDCompatible 1, 2, 3
  • Clear aperture: 20 mm
  • Eye relief: Unlimited

Power Source:

  • Battery type: 3V lithium battery, type CR2032.
  • Battery life - Day time use: 5 years (50 000h) of continuous use at pos. 8 and over 10 months at pos. 10. Responds to >500 000 hours at NVD setting (pos. 2)
  • Power intensity: 4 NVD and 8 Daylight, of which 1 extra bright

Physical Specifications:

  • Length sight only: 62 mm (2,4")
  • Length std conf: 69 mm (2,7")
  • Width: 41 mm (1,6")
  • Height sight only: 36 mm (1,4")
  • Height std conf: 41 mm (1,6")
  • Weight sight only (incl battery): 84g, ( 3,0 oz)
  • Weight std conf: 116 g (4,1 oz) incl. Lens Covers and Mount
  • Housing material: High Strength Aluminum
  • Housing finish and color: Matte black
  • Material mount and spacer std conf: High Strength Aluminum
  • Surface treatment: Hard anodized, matte
  • Height of optical axis - sight andmount: 18 mm (0,7") over top surface of Picatinny/Weaver Rail
  • Height of optical axis - sight, mount and Micro spacer XX: Spacer low: 48 mm (1,9") over top surface of Picatinny/Weaver Rail
  • Height of optical axis - sight, mount and Micro spacer ZZ: Spacer high: 57 mm (2,2") over top surface of Picatinny/Weaver Rail
  • Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = 1/2 at 100 yds

Enviromental Specifications:

  • Temperature range operation: -45°C to 71°C (-49°F to 160°F)
  • Temperature range storage: -51°C to 71°C (-60°F to 160°F)
  • Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
  • Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic Immersion, static: Operates after immersion. Limits: Depth: 25m (83ft.)
  • Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature)
  • Vibration: Operates despite vibration.
  • Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75g, 1 octave/min Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)

Mechanical Interface:
Mounting: N/A
Max distance between rings mm/": N/A

Mounts Addons:

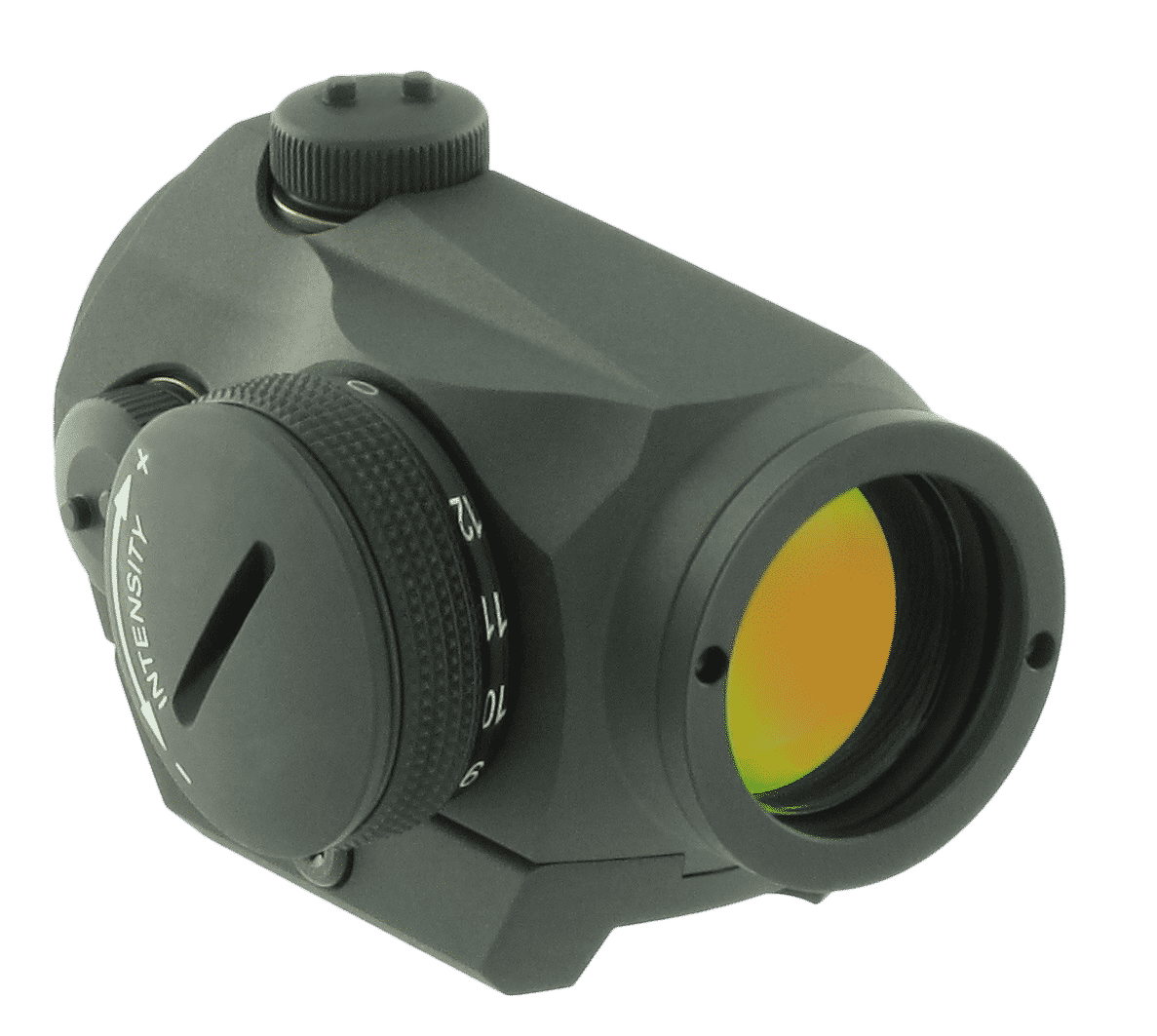

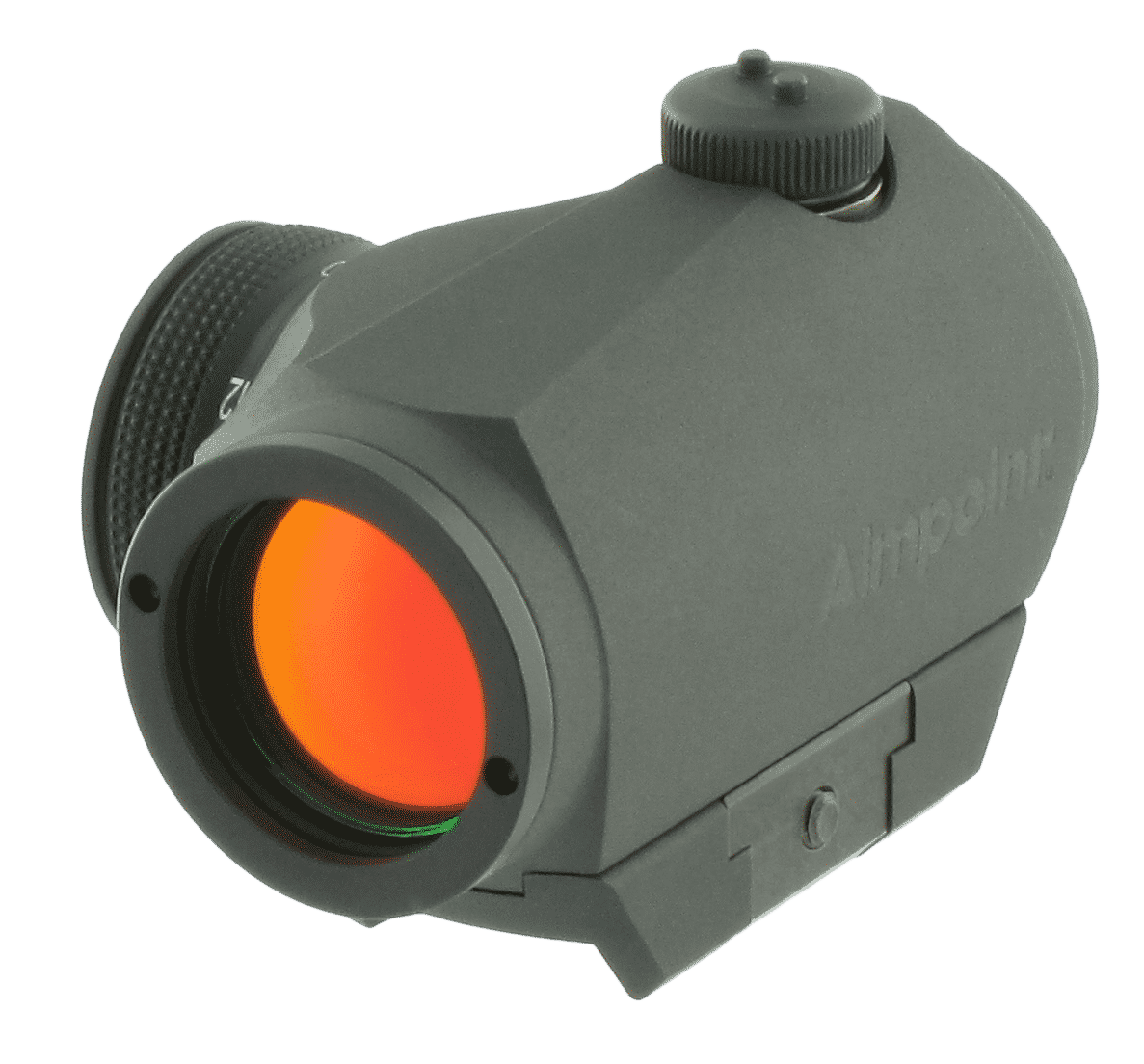

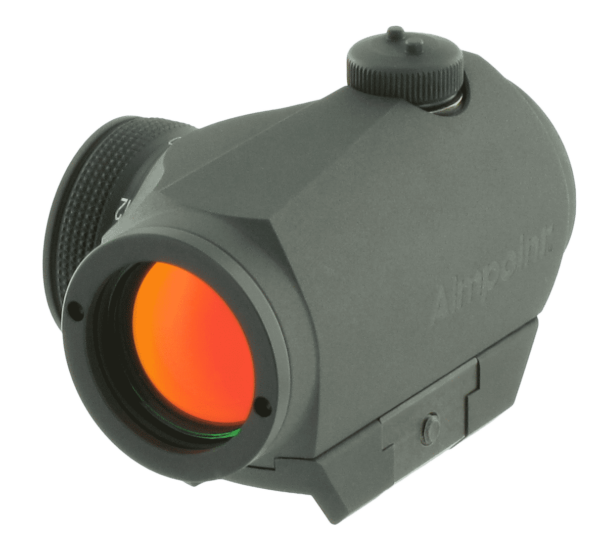

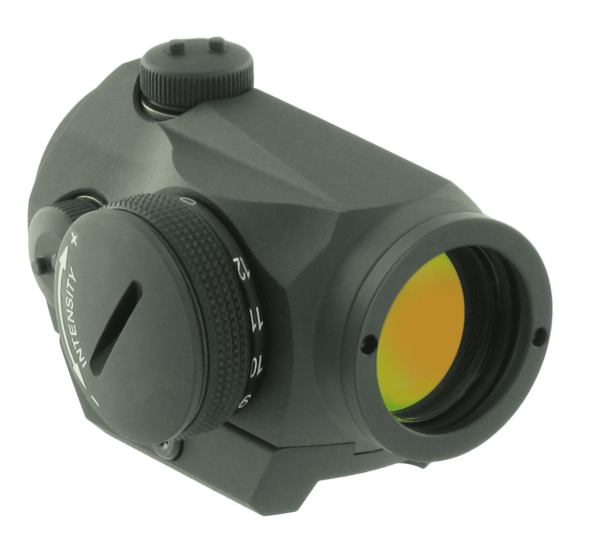

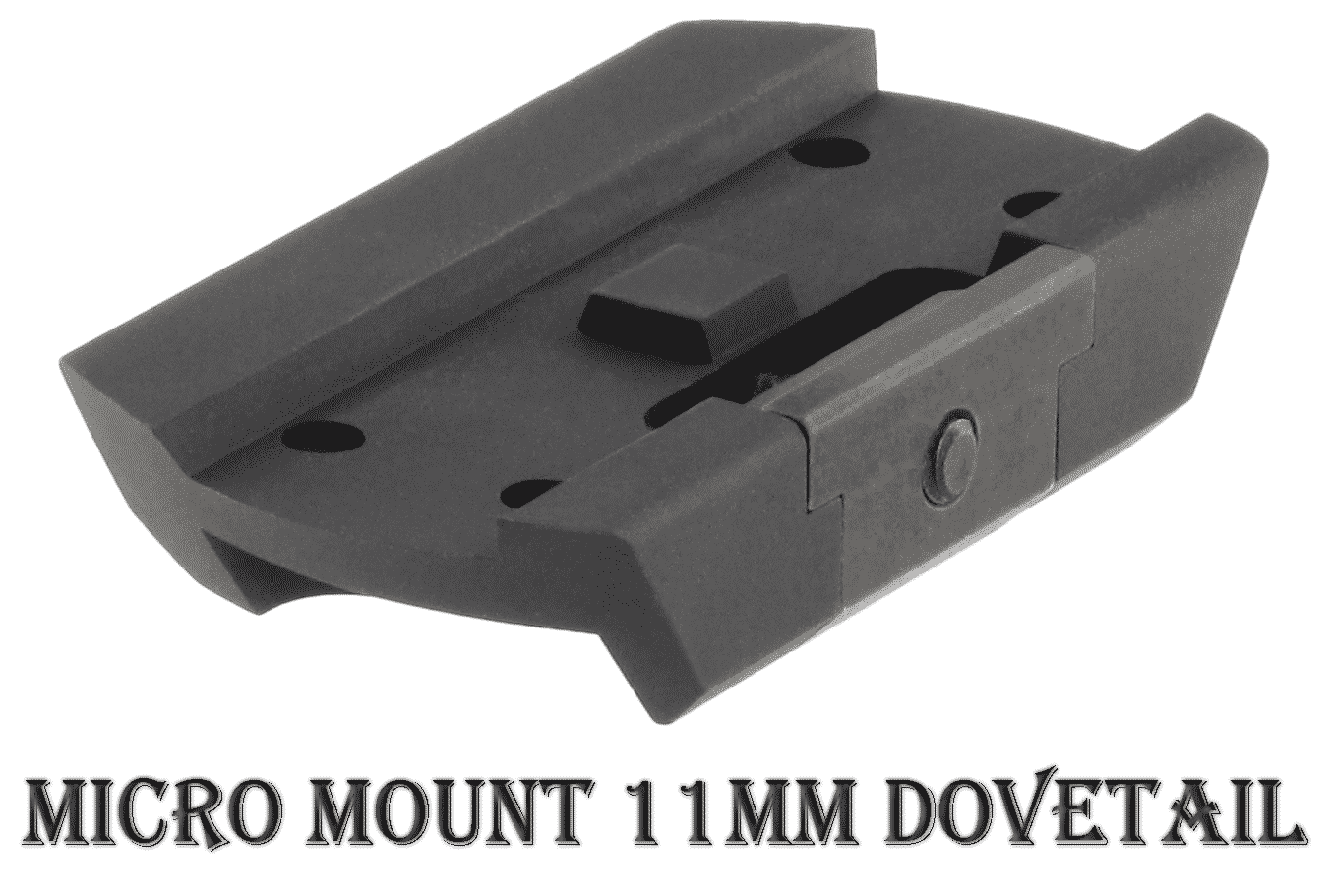

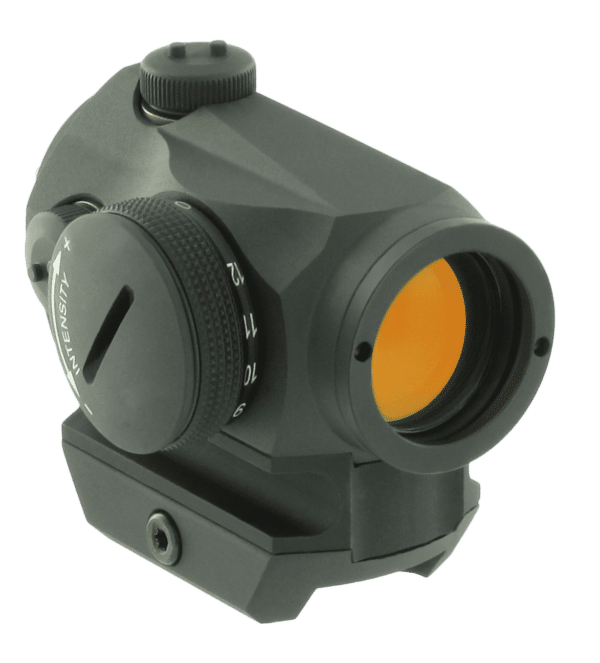

Micro Mount 11mm Dovetail: (+85$ - Out Of Stock)

  • Fits most of the 11 mm Dovetail Bases ranging from 10-12,5 mm.
  • Screws and Micro Tool included.

Micro Mount LRP: (+85$)

  • Lever Release Picatinny for Micro sights.
  • Returns to zero after dismounting.
  • Screws, Micro Tool and Thread sealer included.

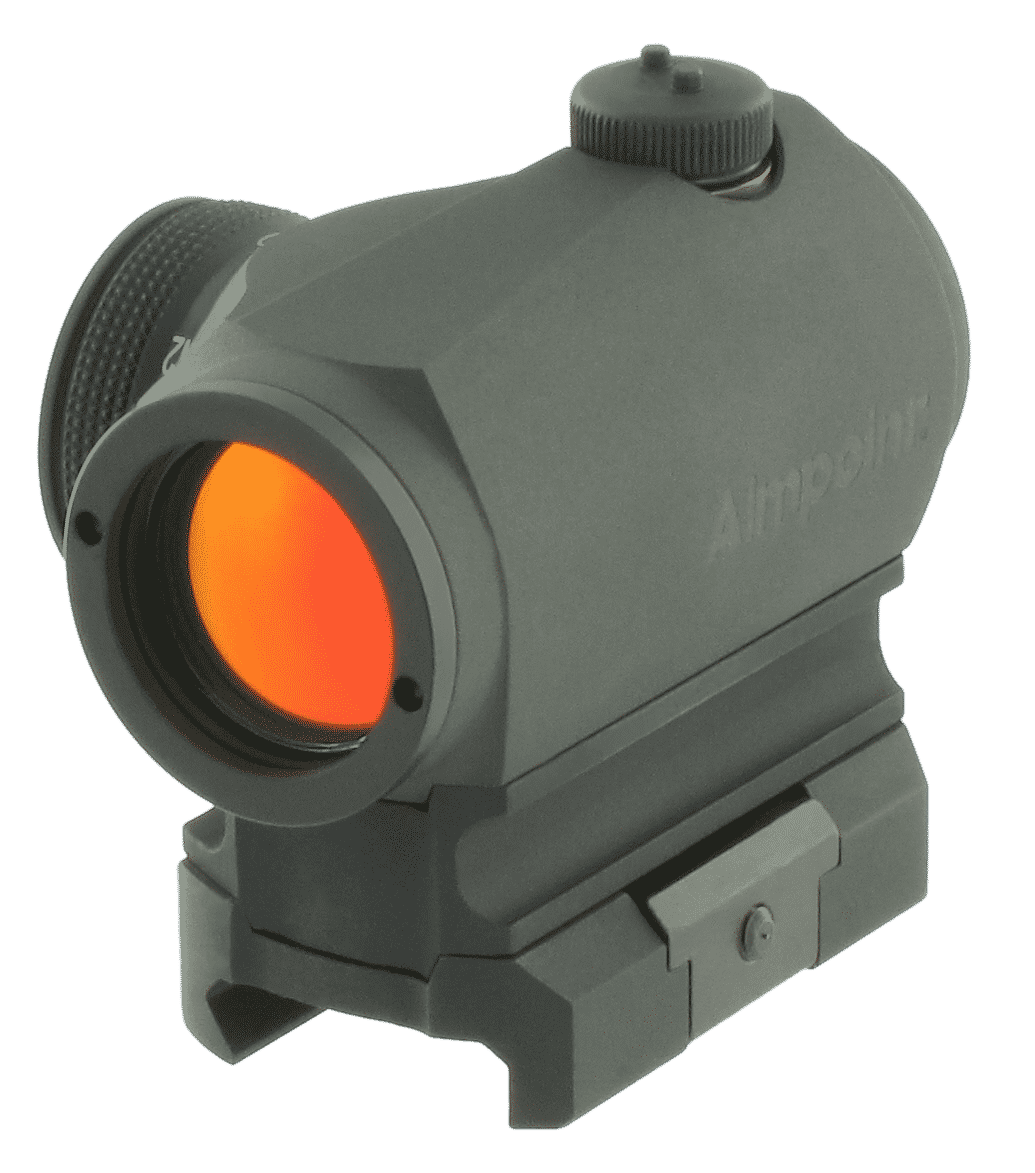

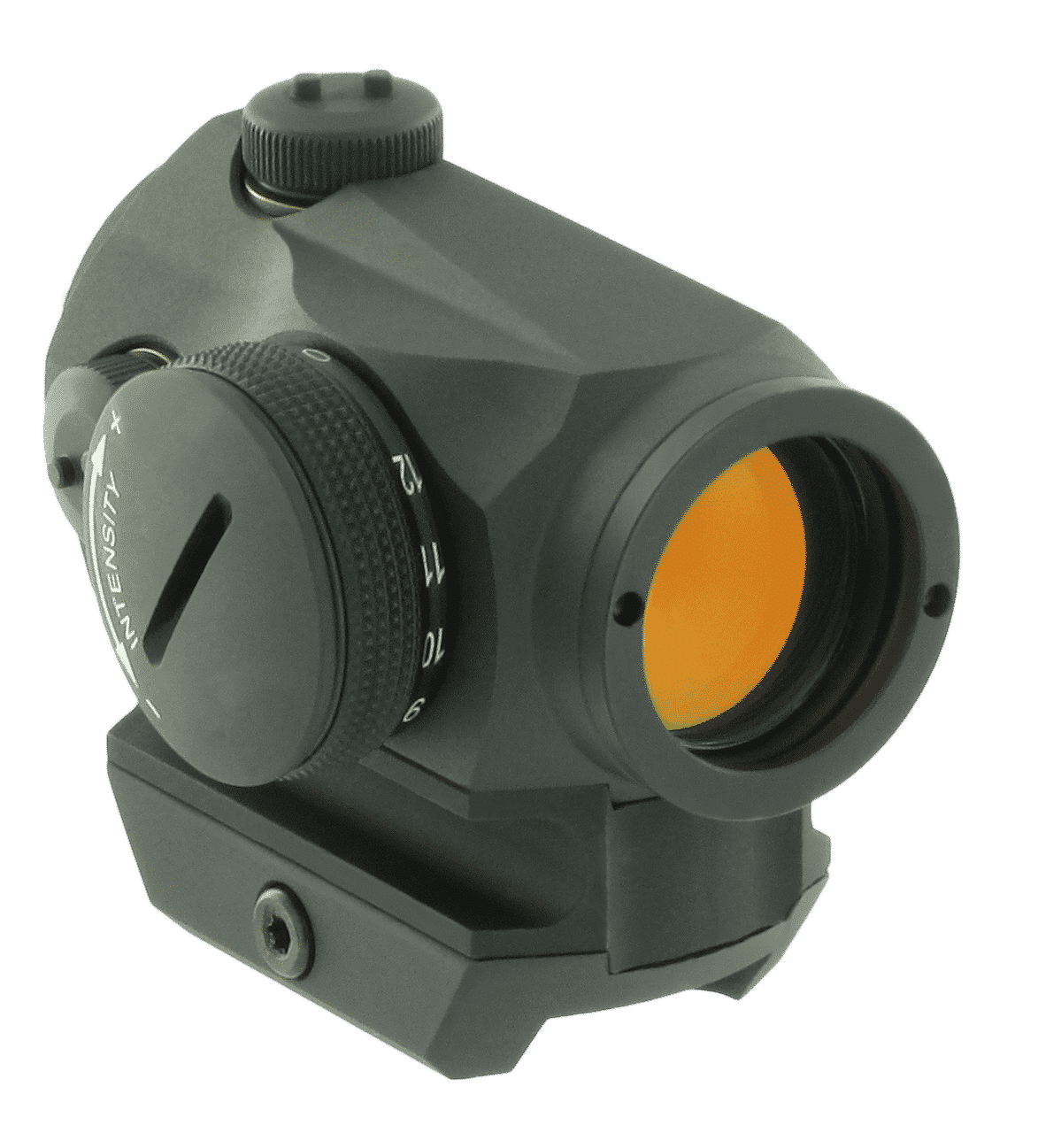

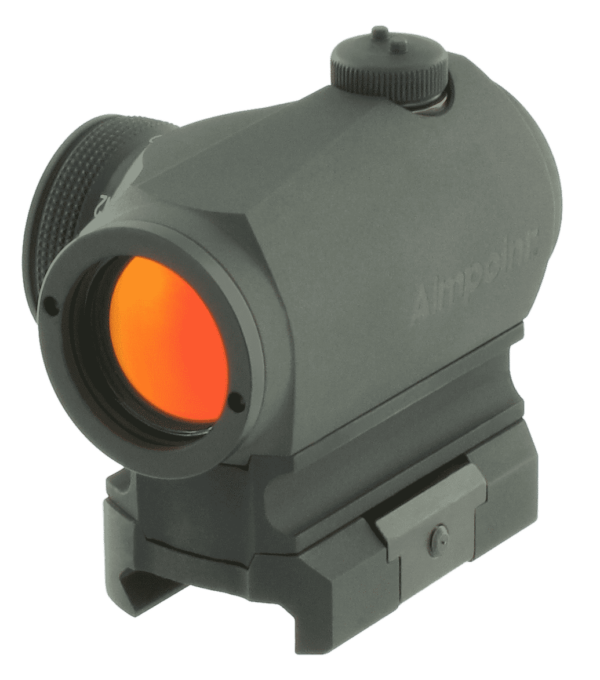

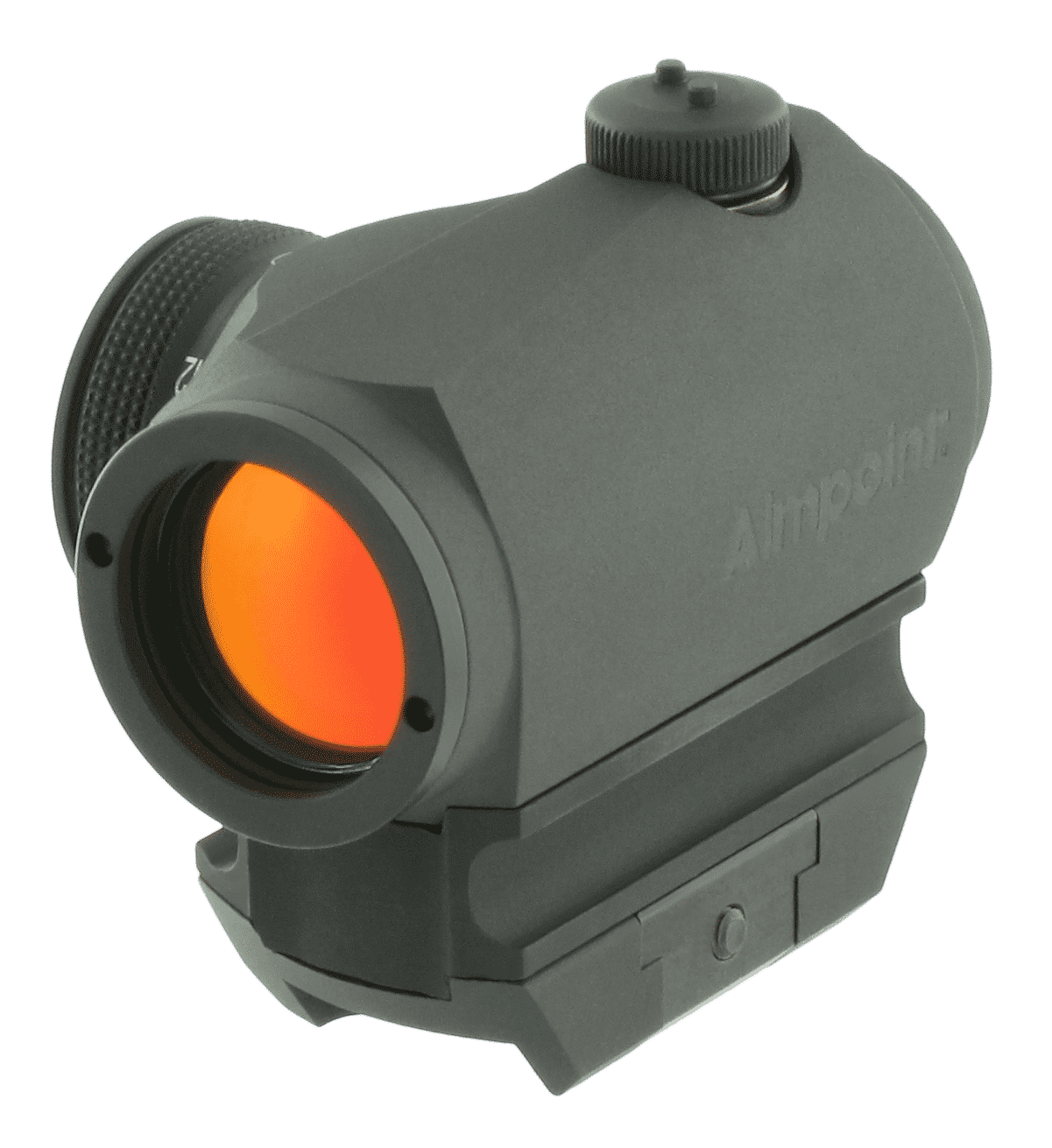

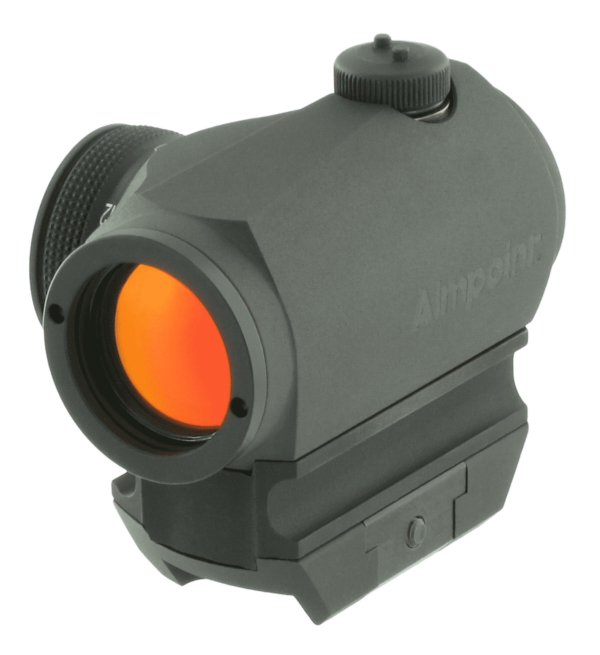

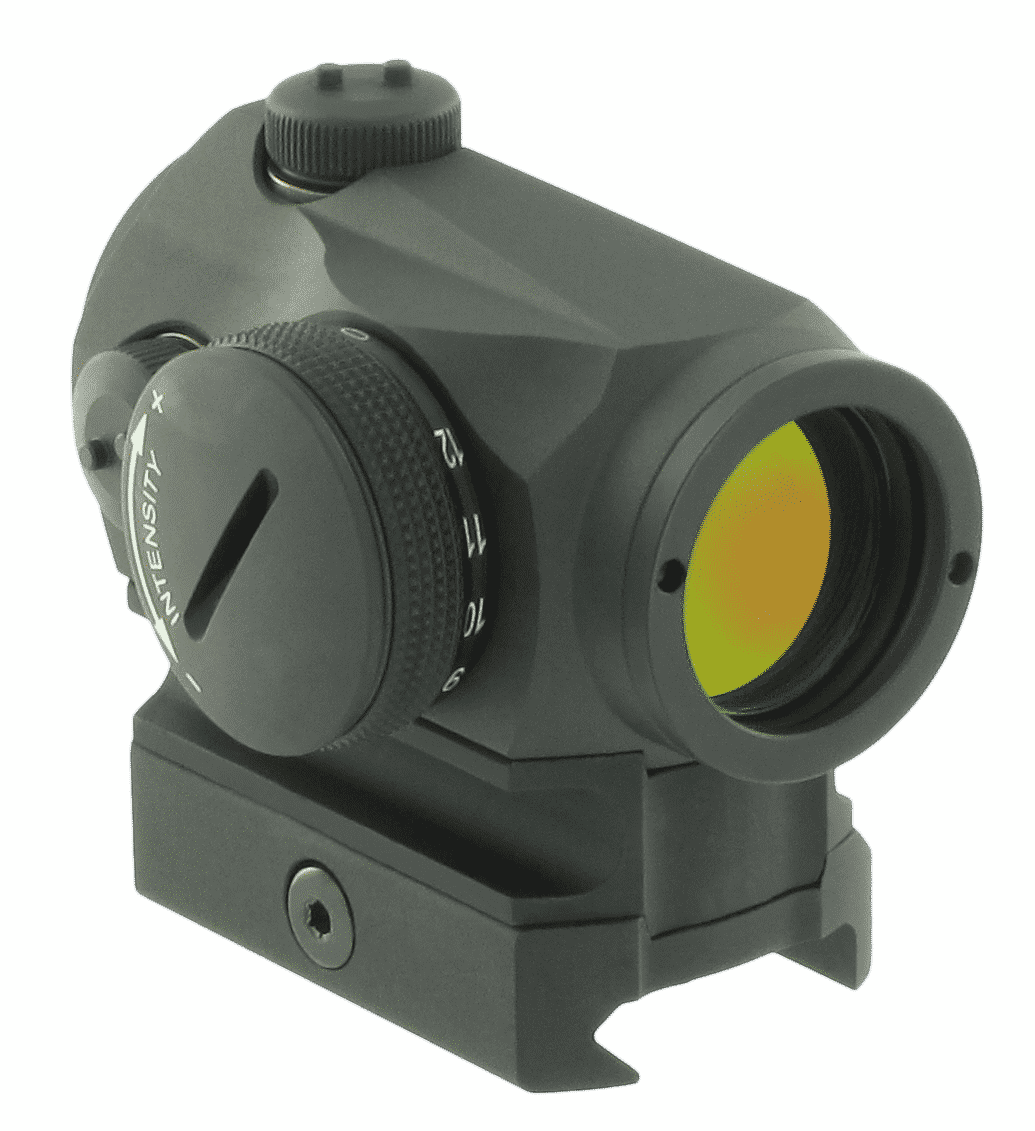

Micro Spacer Low - 30mm: (+45$)

  • Raises height of optical axis to 30 mm.
  • Four screws (torx), Micro Tool and thread sealer included.

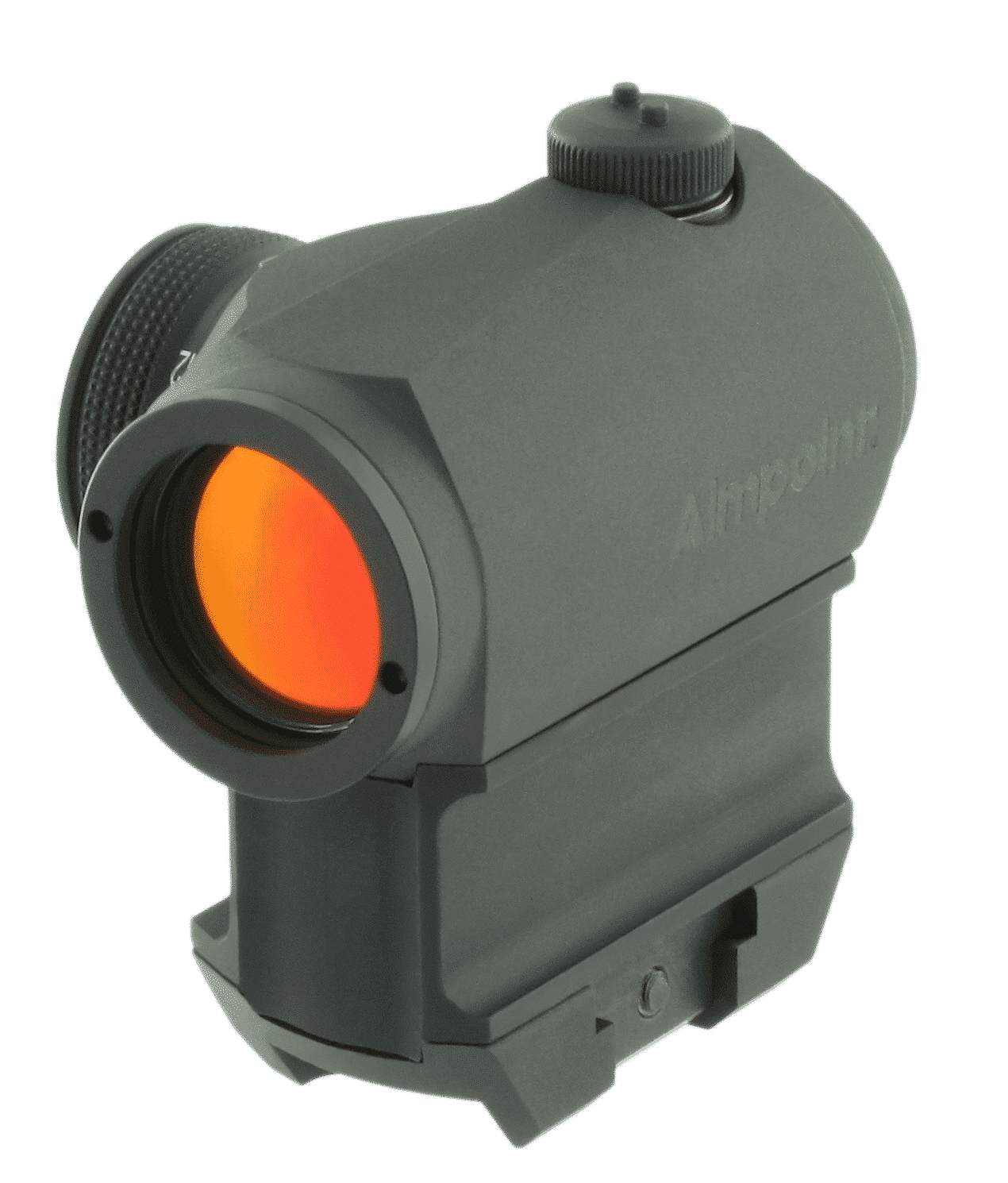

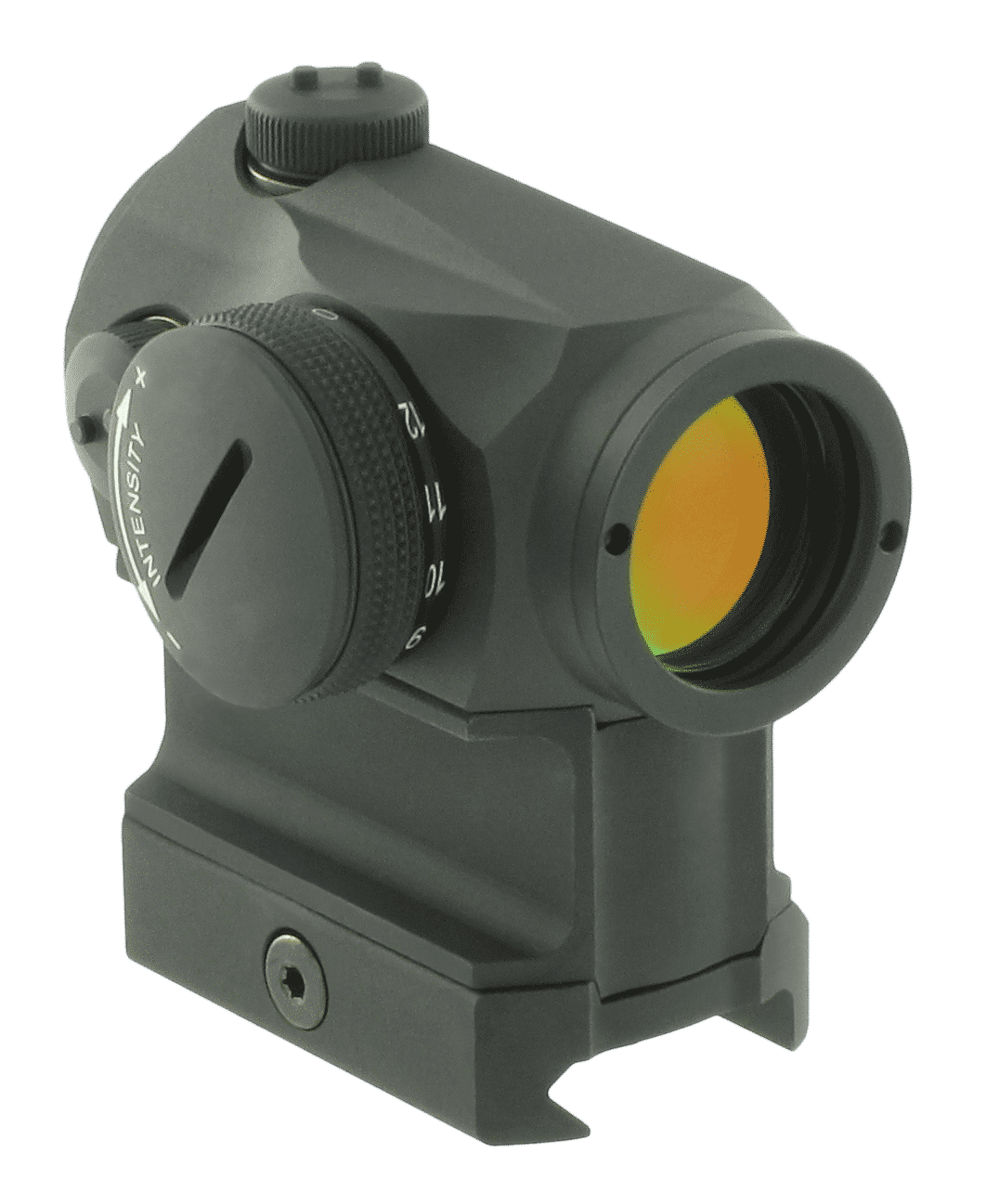

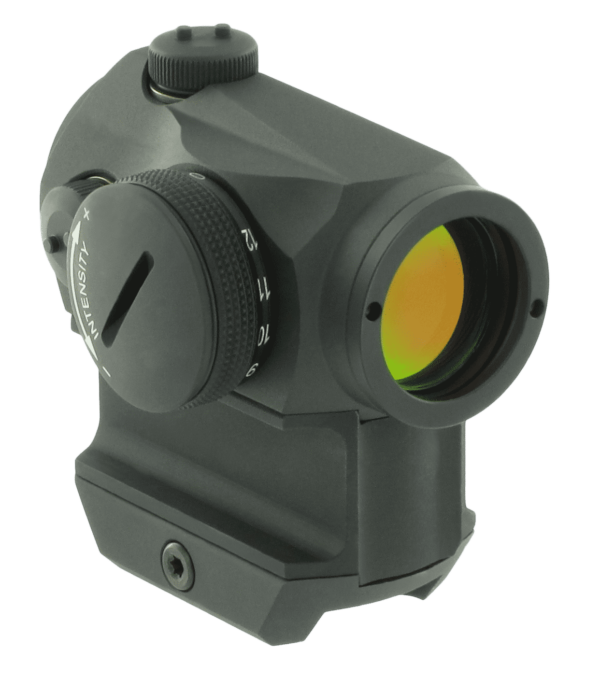

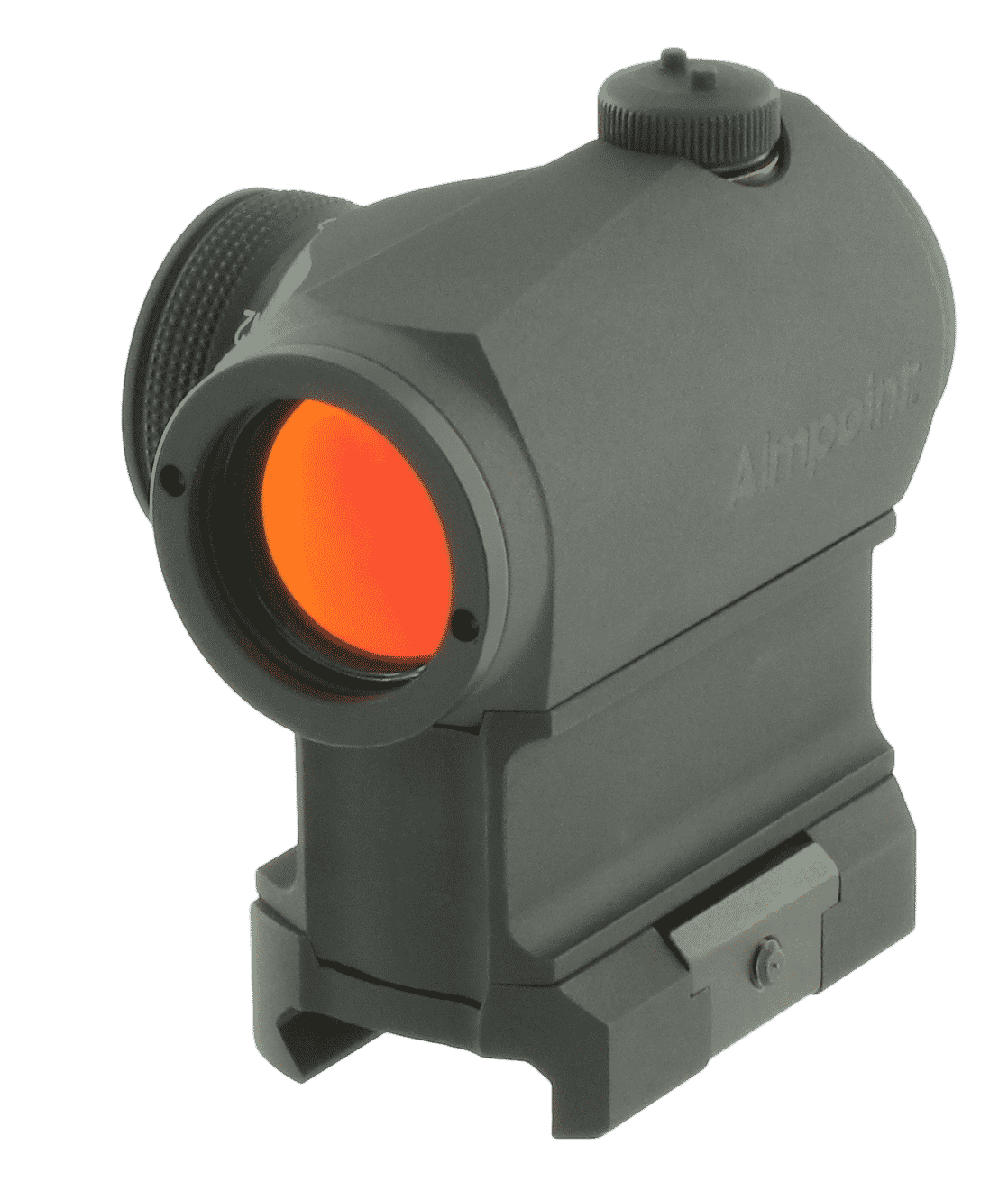

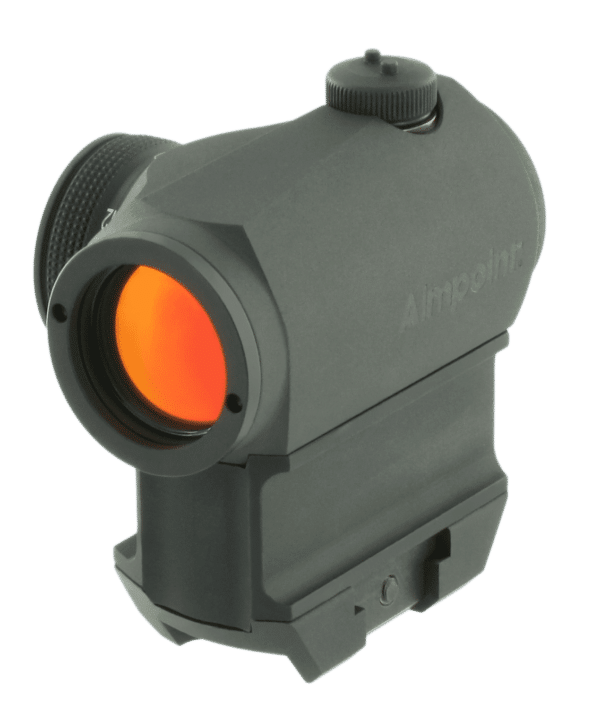

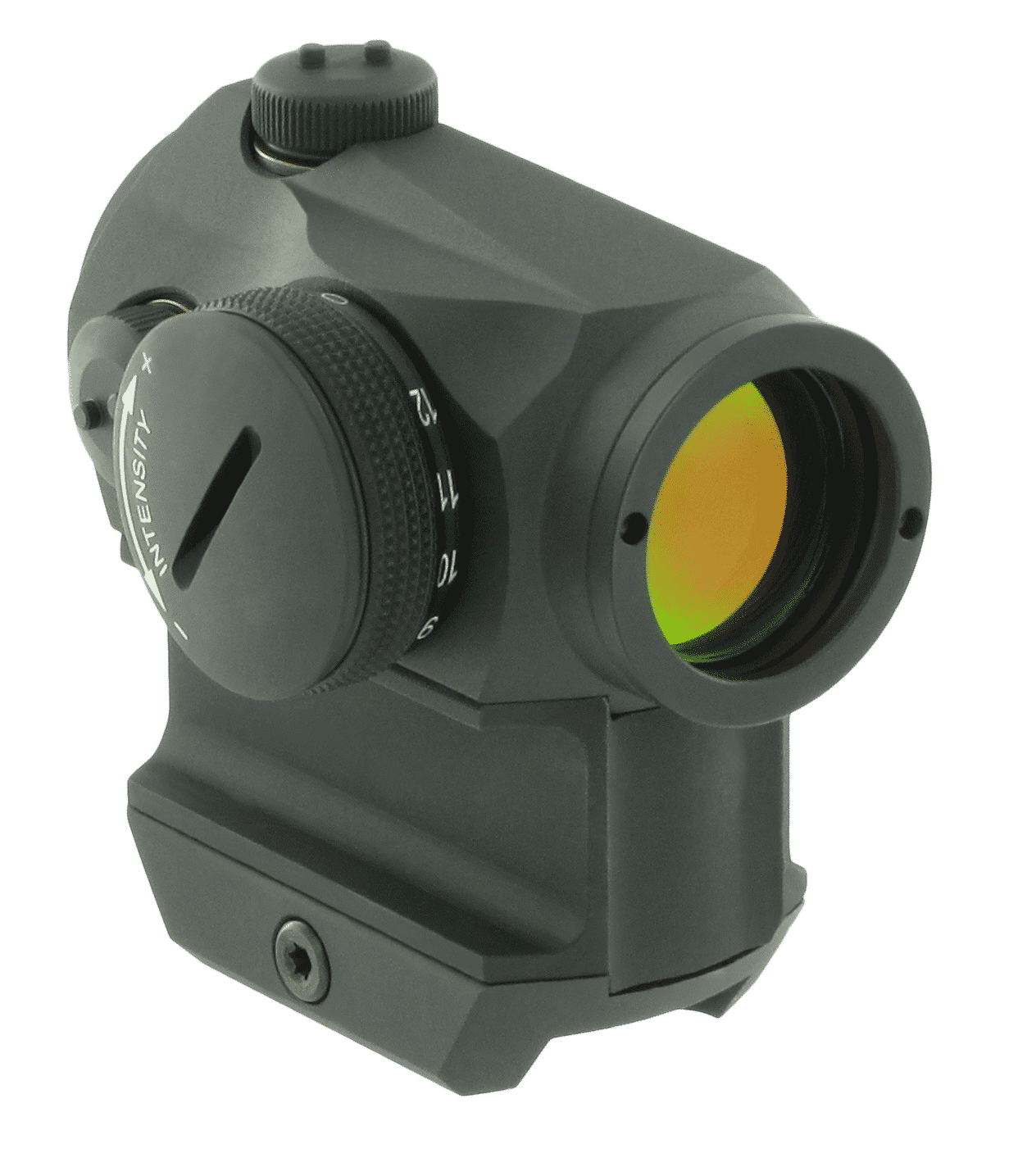

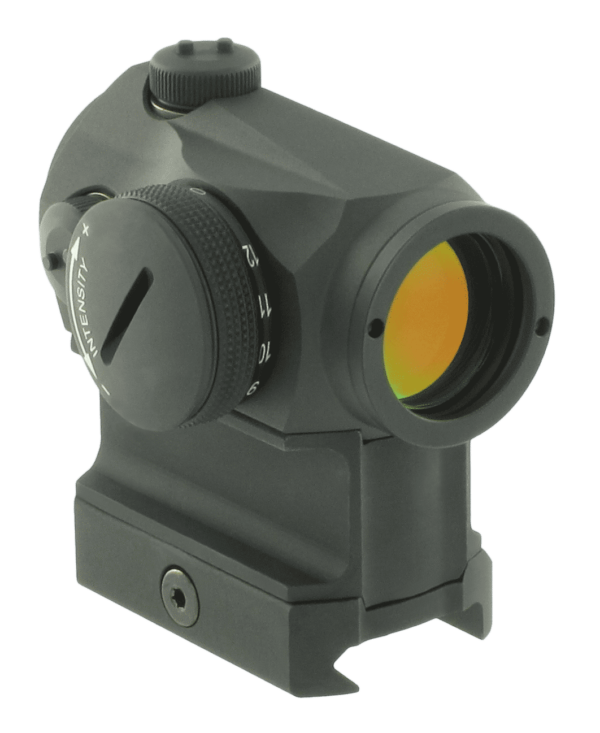

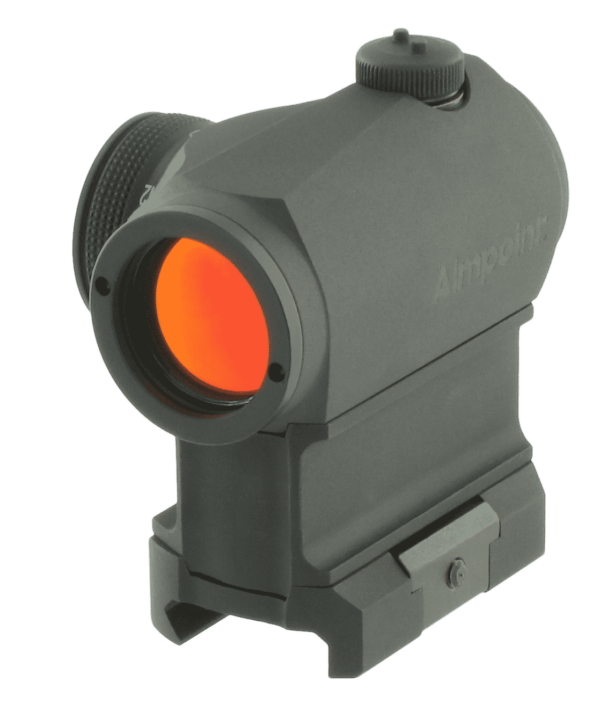

Micro Spacer High - 39mm:(+45$)

  • Raises height of optical axis to 39 mm for co-witness with AR-15.
  • Four screws (torx), Micro Tool and thread lock included.

For more information you can see the Use Manual & the Product Sheet.
