This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.
$1,429.95
This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remain uncluttered for optimal viewing and feature 10 intensity levels with off positions between each setting.
Optical Features |
|
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-etched Reticle | Protected between two layers of glass for optimum durability and reliability. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
Construction Features |
|
| Tube Size | 30 mm diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |

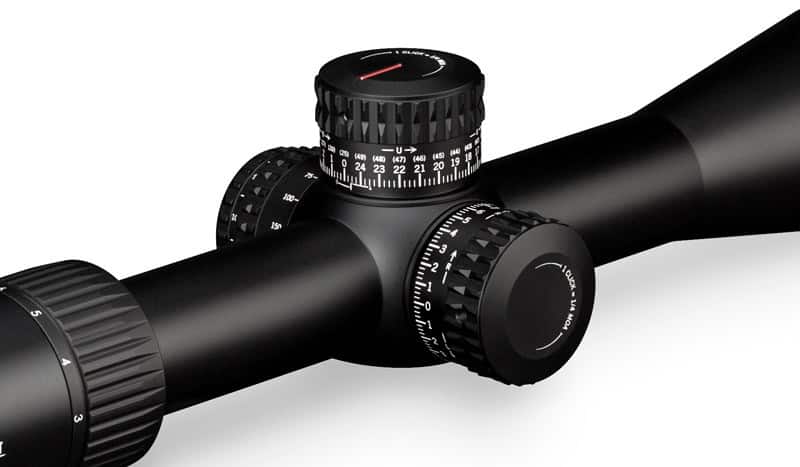

| Tactical-Style Turrets | Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
Internal Mechanism Design Features |
|
| RZR Zero Stop | Zero Stop mechanism prevents the turret from dialing below sight-in range. Download directions on How to set the Zero Stop. |
| Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features |
|
| Radius Bar | Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879 |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Built-In Accuracy Features | Matching (MRAD or MOA) turrets and reticles facilitate fast and accurate shooting at extended ranges. The patented fiber optic Radius Bar visually assists tracking turret rotations. US Patent 7,937,879 |
| Magnification | 3-15 x |
| Objective Lens Diameter | 44 mm |
| Eye Relief | 3.4 in |
| Field of View | 41.2-8.6 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Tactical RZR Zero Stop |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 25 MOA |
| Max Elevation Adjustment | 75 MOA |
| Max Windage Adjustment | 40 MOA |
| Parallax Setting | 20 yards to Infinity |
| Length | 14.3 inches |
| Weight | 28.1 ounces |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.3 | 2.3 | 2.50 | 6.85 | 4.2 | 3.75 |
| Heights | |
| H1 | H2 |
| 2.08 | 1.8 |
Dimensions measured in inches.
Hash-marked reticle using MOA or MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below..
Subtension detail for the Viper PST Gen II 3-15x44 riflescope with EBR-2C (MOA) reticle. >
Read the Viper PST Gen II 3-15x44 Riflescope with EBR-2C (MOA) reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
