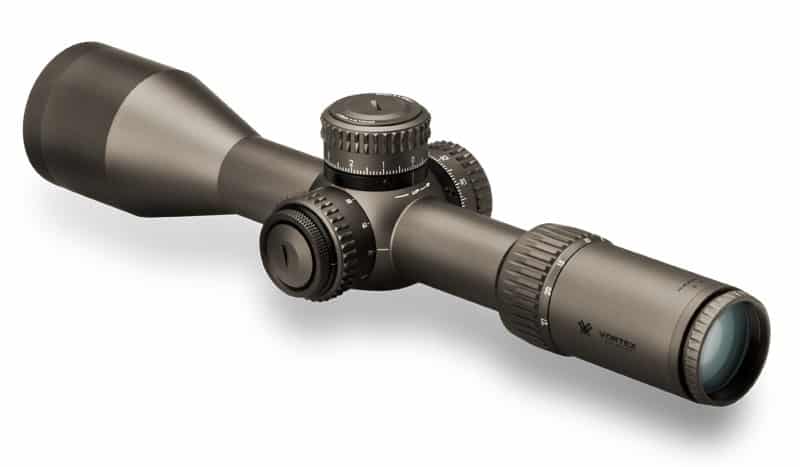

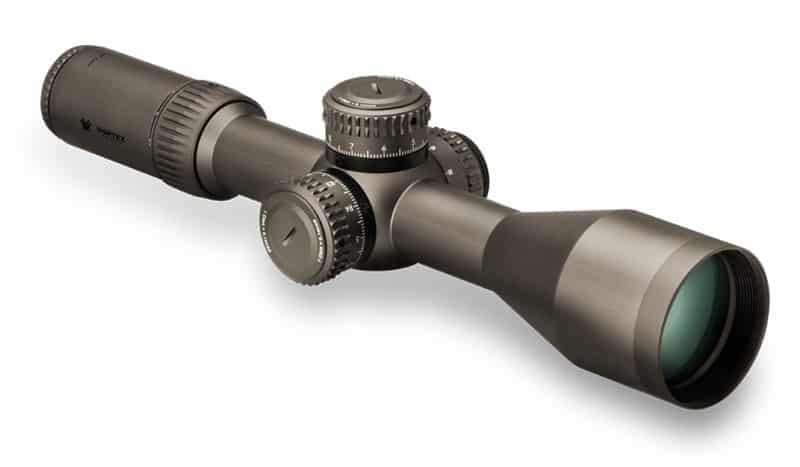

RZR-42706 Vortex Optics Razor HD Gen II 4.5-27X56 Riflescope with EBR-2C Reticle (MRAD)
$3,024.95
The new frontrunners in the race for the ultimate precision, long-range optics. The Gen II Razors, designed and engineered for dialing precision long-range shots in extreme environments, have serious precision shooters saying "finally". The Gen II Razors feature a 6x zoom range, a 34 mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec turret system plus a host of additional high-performance features for state-of-the-art optics with deadly accuracy.
Features:
Optical Features:
| APO System | Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| HD Lens Elements | Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. |
| XR™Plus Fully Multi-Coated | Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness. |
| Plasma Tech | Cutting edge application process provides unparalleled coating durability and performance. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
Construction Features:
| Tube Size | 34 mm diameter provides maximized internal adjustment and strength. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Stealth Shadow Finish | Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |

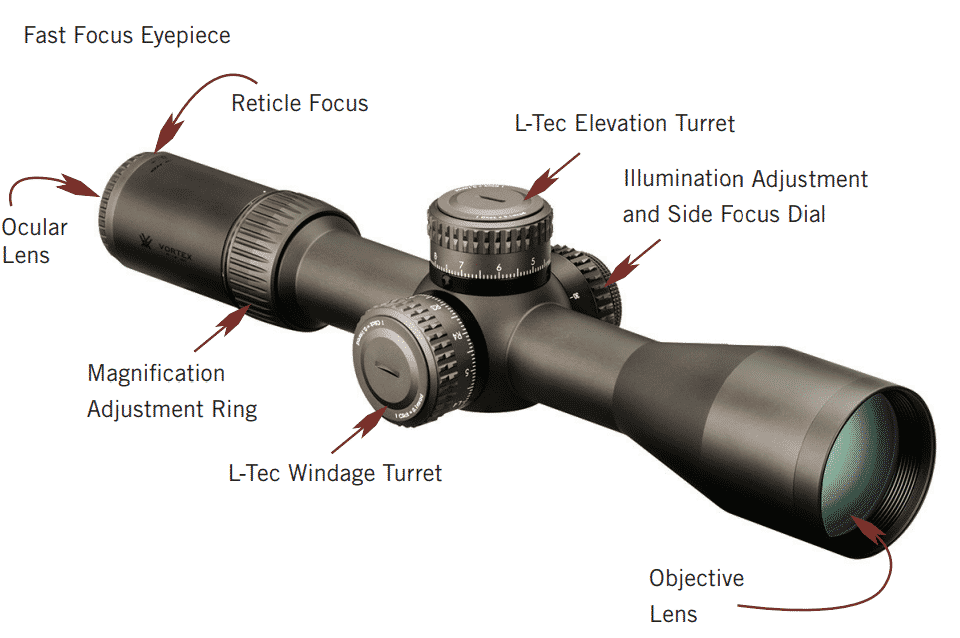

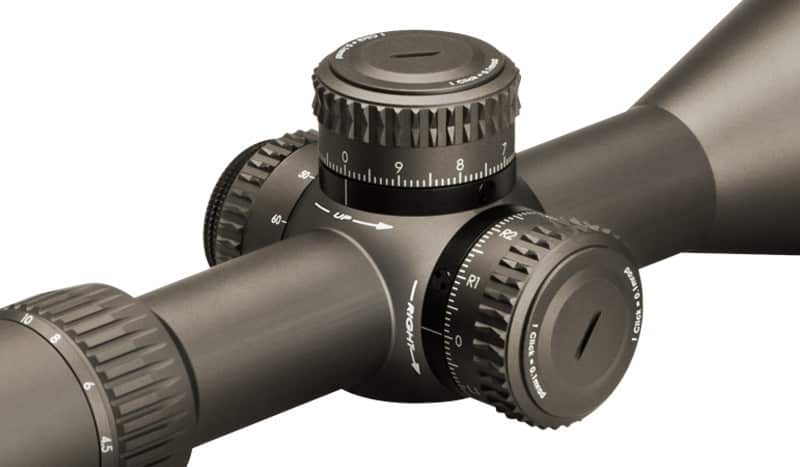

| L-Tec Turrets | Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending. |
| External Rotation Indicator | Provides quick visual and tactile reference of elevation turret’s rotational position. |
| Locking Illumination | Locks illumination at preferred setting. |
| Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Internal Mechanism Design Features:
| L-Tec Zero Stop | Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. Patent pending. |
| Maximized Turret Zero Adjustment | For zeroing purposes, turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes. This scope offers 33 MRAD total elevation adjustment and 14 MRAD total windage adjustment. |
| Micro Adjust Zero Setting | Infinite zero setting positions allow zero to be set between clicks for optimal accuracy. |
| Friction Reduction System | Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665 |
| Turret Screws | Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments. |
| Erector Tube System | Precision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments. |
Convenience Features:

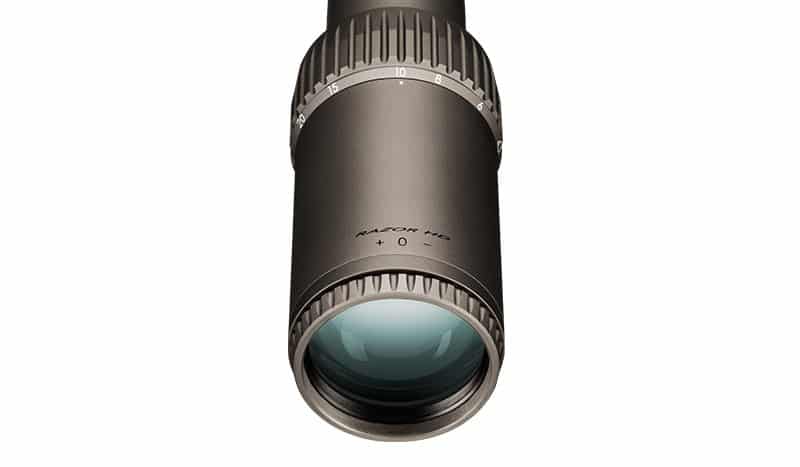

| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Locking Side Illumination | Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting. |

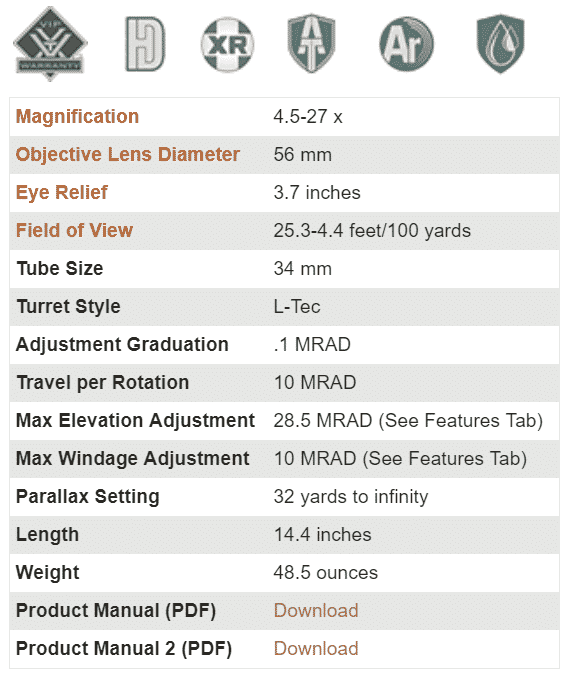

Specifications:
| Magnification | 4.5-27 x |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 3.7 inches |
| Field of View | 25.3-4.4 feet/100 yards |
| Tube Size | 34 mm |
| Turret Style | L-Tec |
| Adjustment Graduation | .1 MRAD |
| Travel per Rotation | 10 MRAD |
| Max Elevation Adjustment | 28.5 MRAD (See Features Tab) |
| Max Windage Adjustment | 10 MRAD (See Features Tab) |
| Parallax Setting | 32 yards to infinity |
| Length | 14.4 inches |
| Weight | 48.5 ounces |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |
Included In the Box:

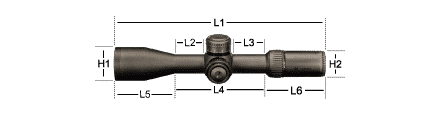

Dimensions:
| LENGTHS | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.4 | 2.0 | 2.2 | 6.1 | 4.1 | 4.1 |
| HEIGHTS | |
| H1 | H2 |
| 2.55 | 1.81 |
* Dimensions measured in inches.
Reticle:
EBR-2C RETICLE (MRAD)
The EBR-2C is a hashmarked ranging reticle using MRAD-based subtension lines for ranging, holdover and windage corrections.
Subtension detail for the Razor HD Gen II 4.5-27x56 riflescope with EBR-2C reticle. >
Note
Read the Razor HD Gen II 4.5-27x56 EBR-2C MRAD Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
