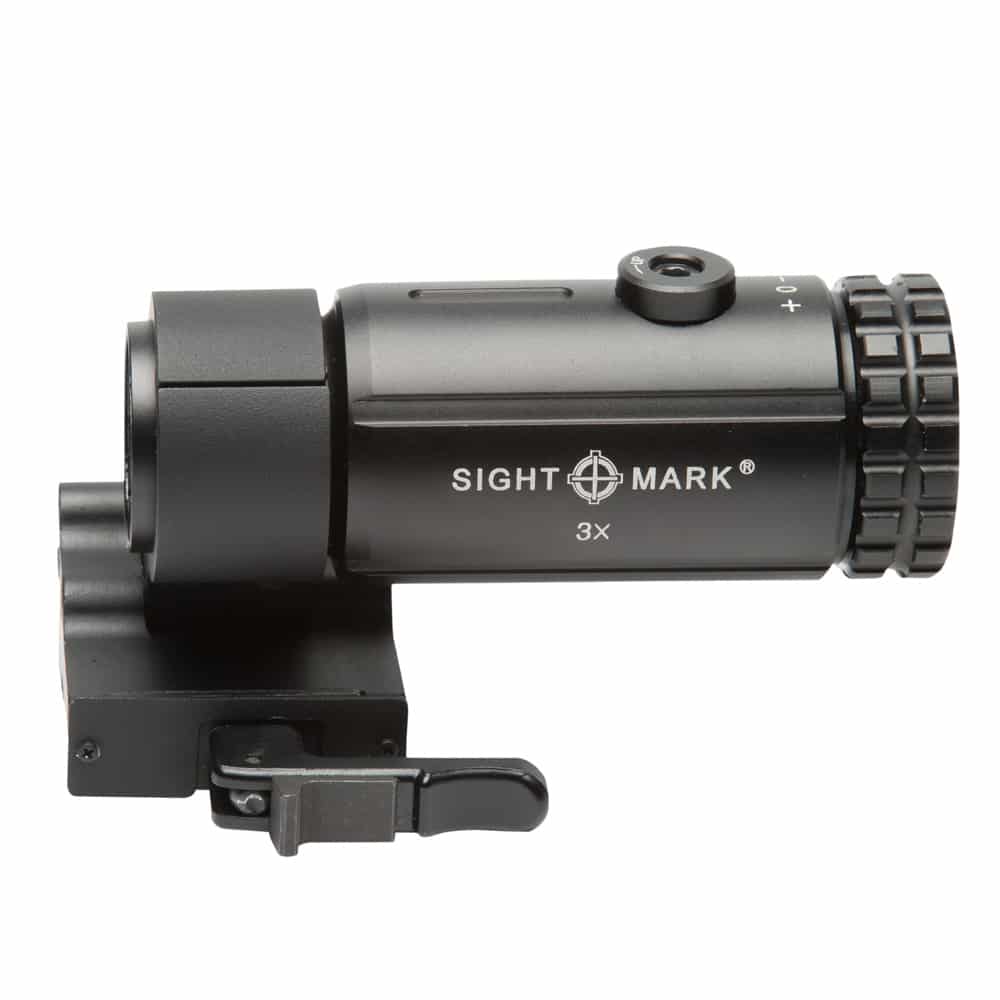

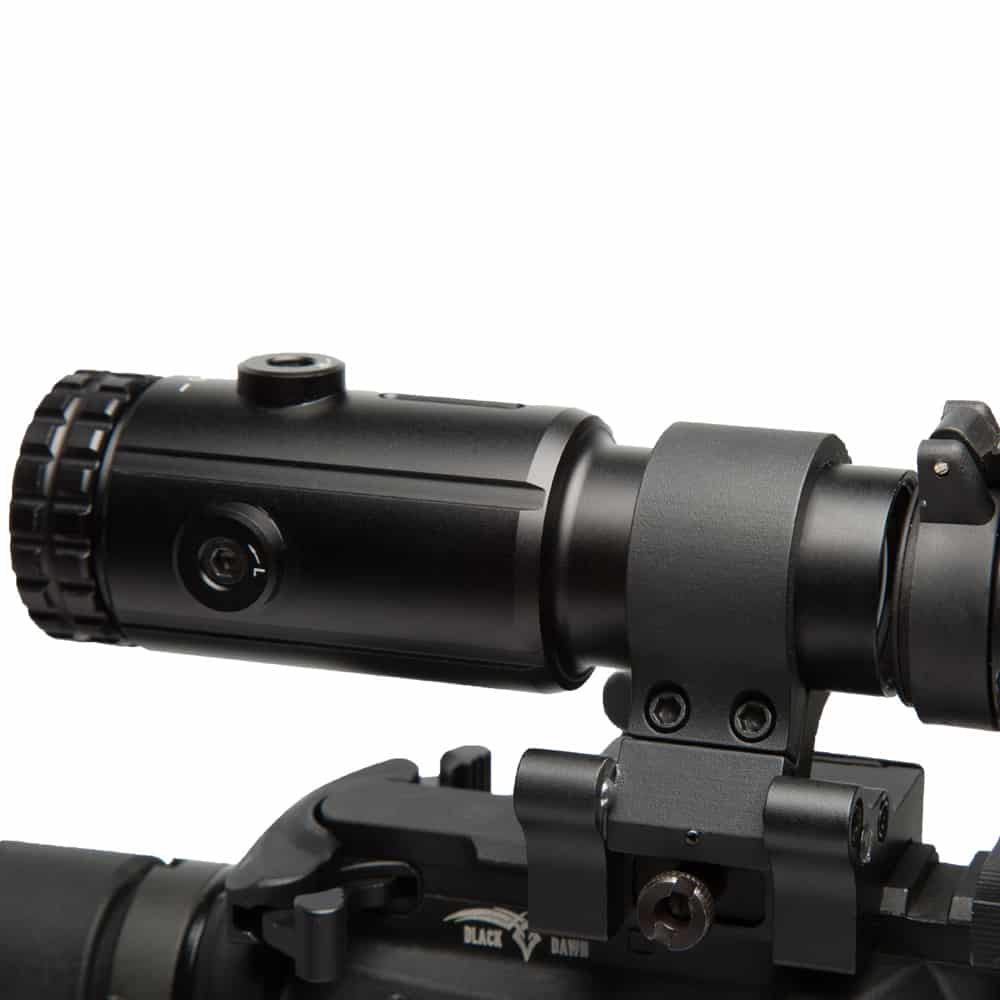

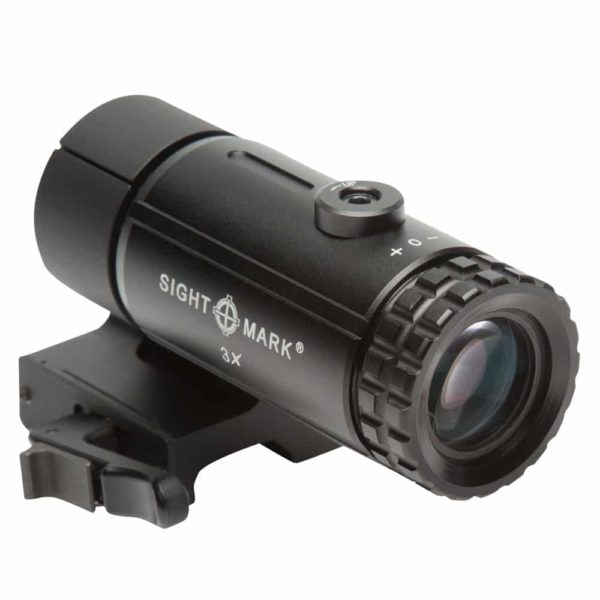

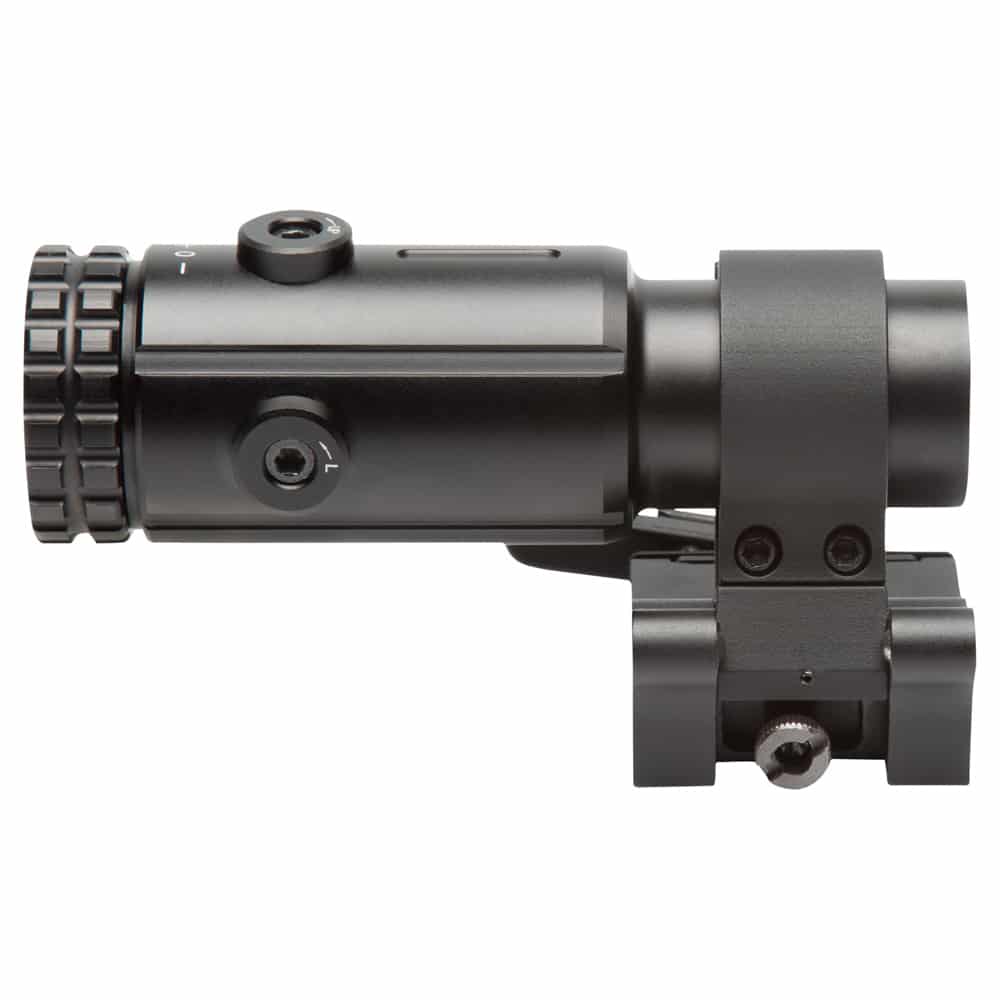

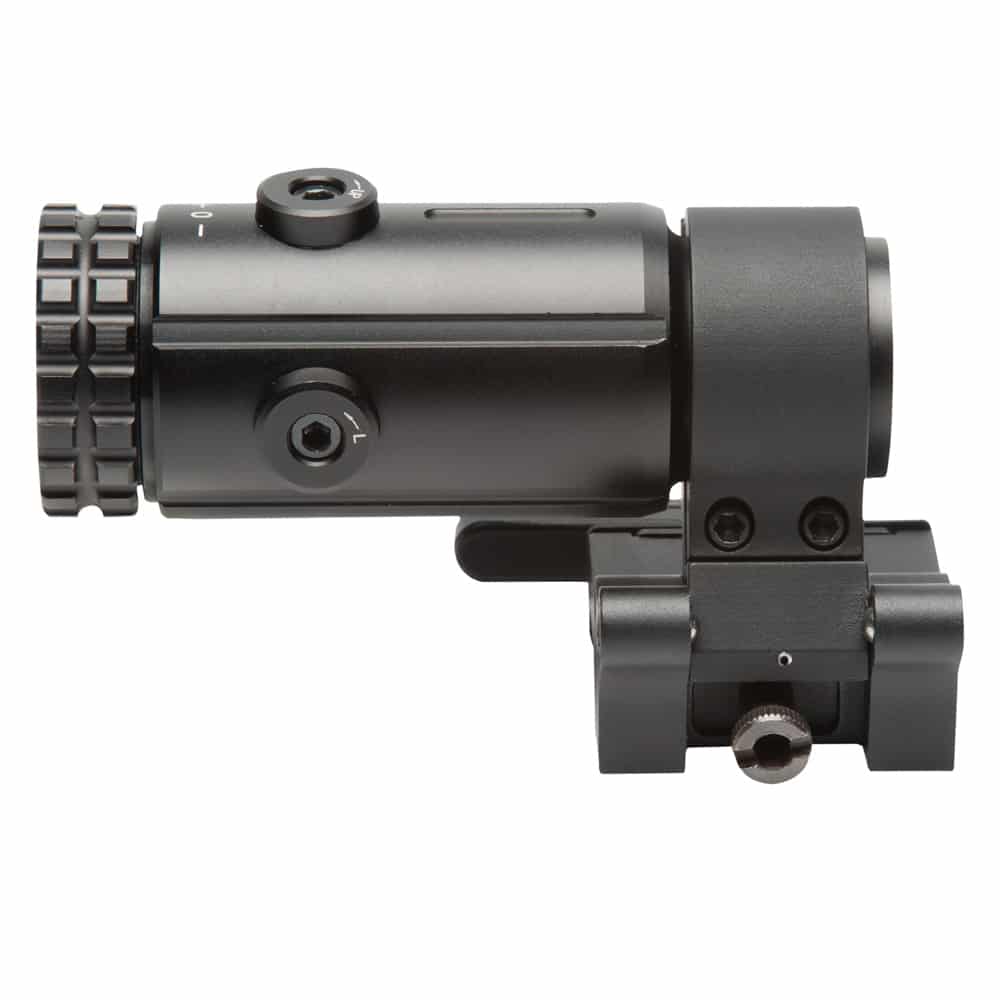

Sightmark T-3/T-5 Magnifier with LQD Flip to Side Mount

Description:

These magnifiers are compatible with most reflex and red dot sights on the market, including Sightmark Element, Wolverine and Ultra Shot models. IP55 water resistant and recoil rated up to .308, Sightmark T-3 and T-5 Magnifiers include flip-to-side LQD mount, adjustment tools and a manual.

SKU: N/A Category:
Price:

This product is currently out of stock and unavailable.

Description
Specifications

Sightmark T-3/T-5 Magnifier with LQD Flip to Side Mount:

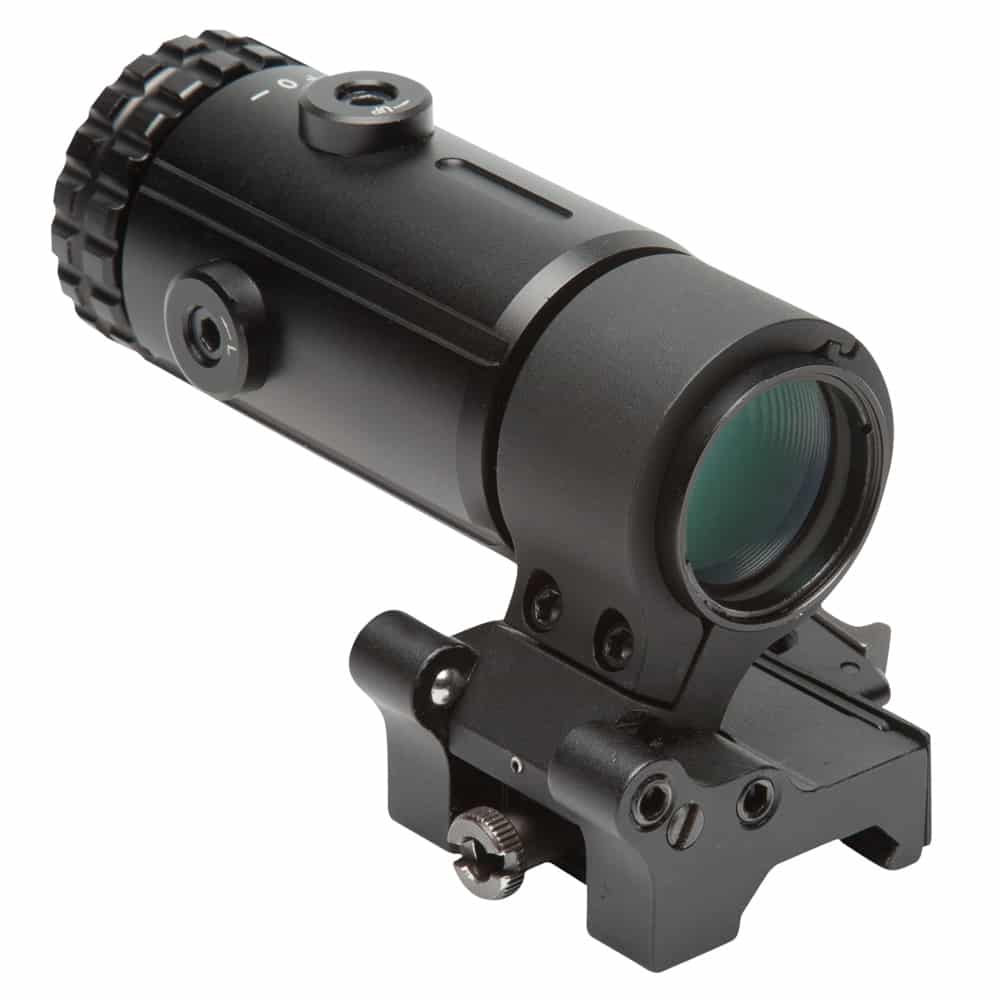

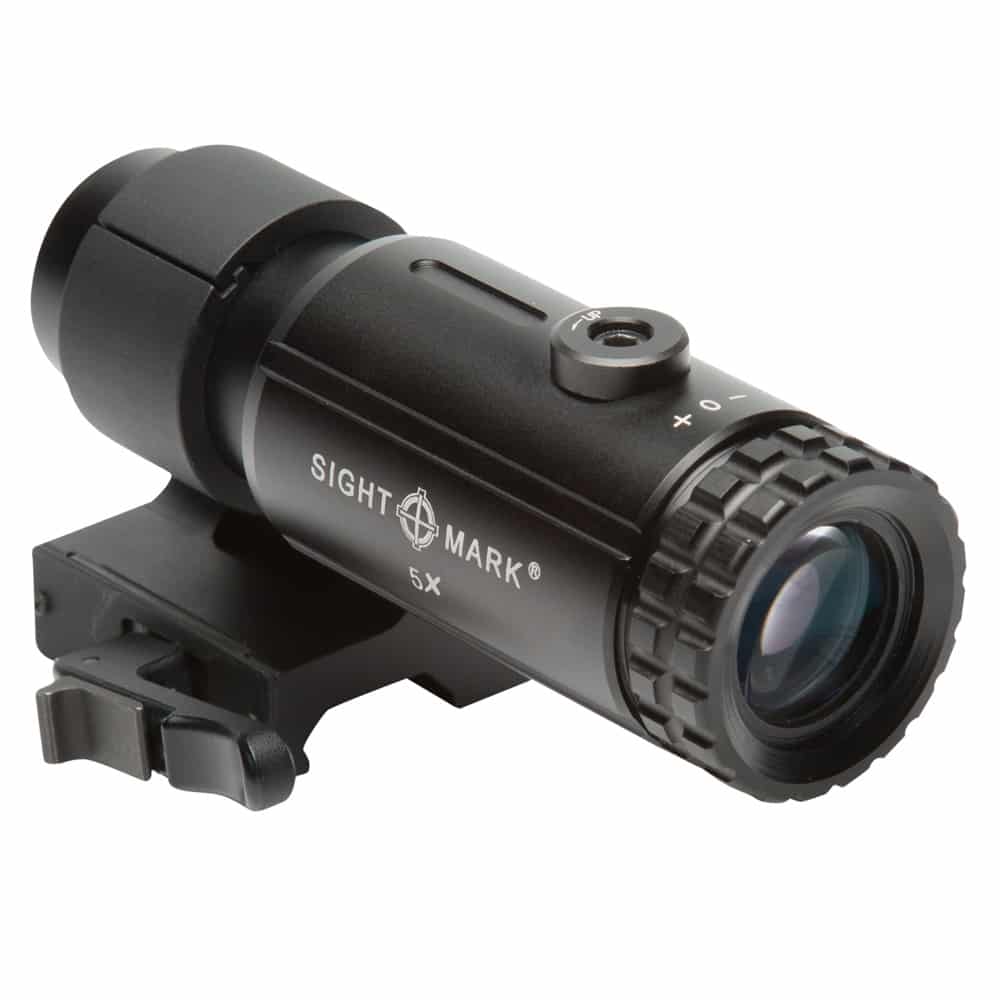

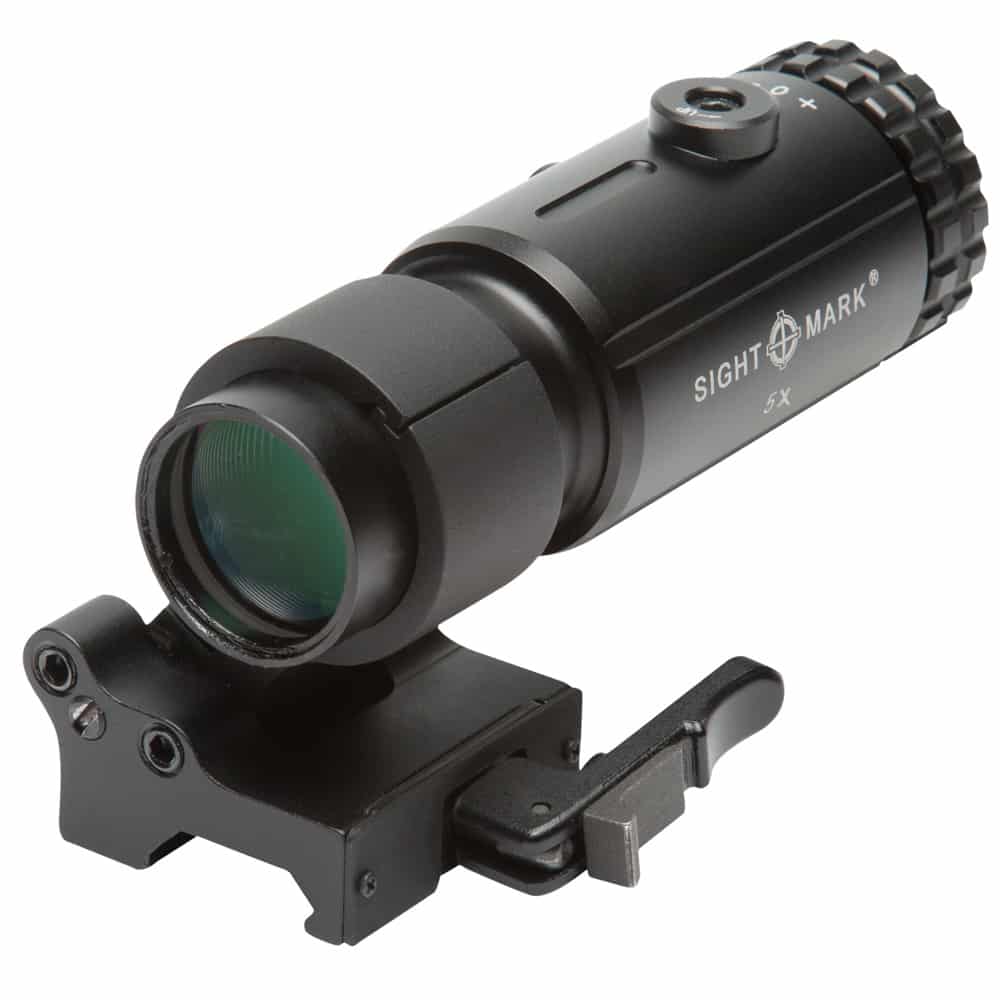

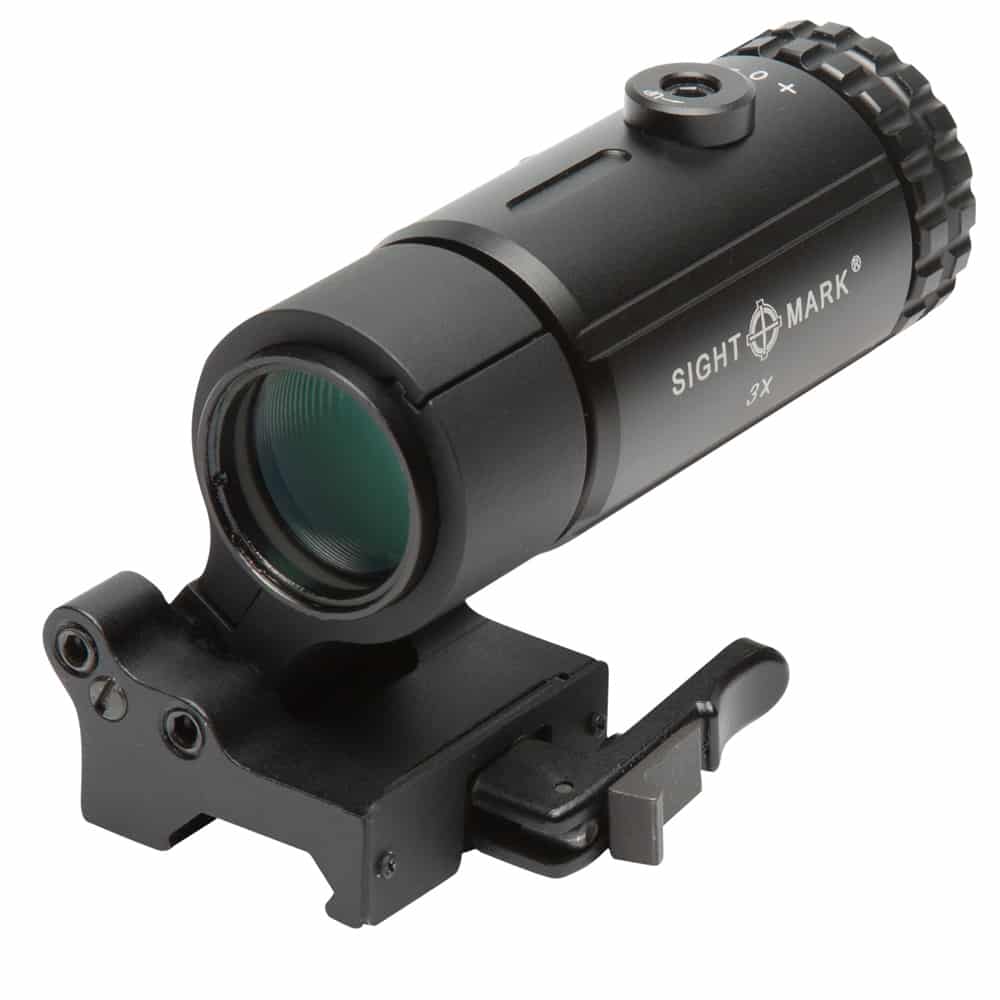

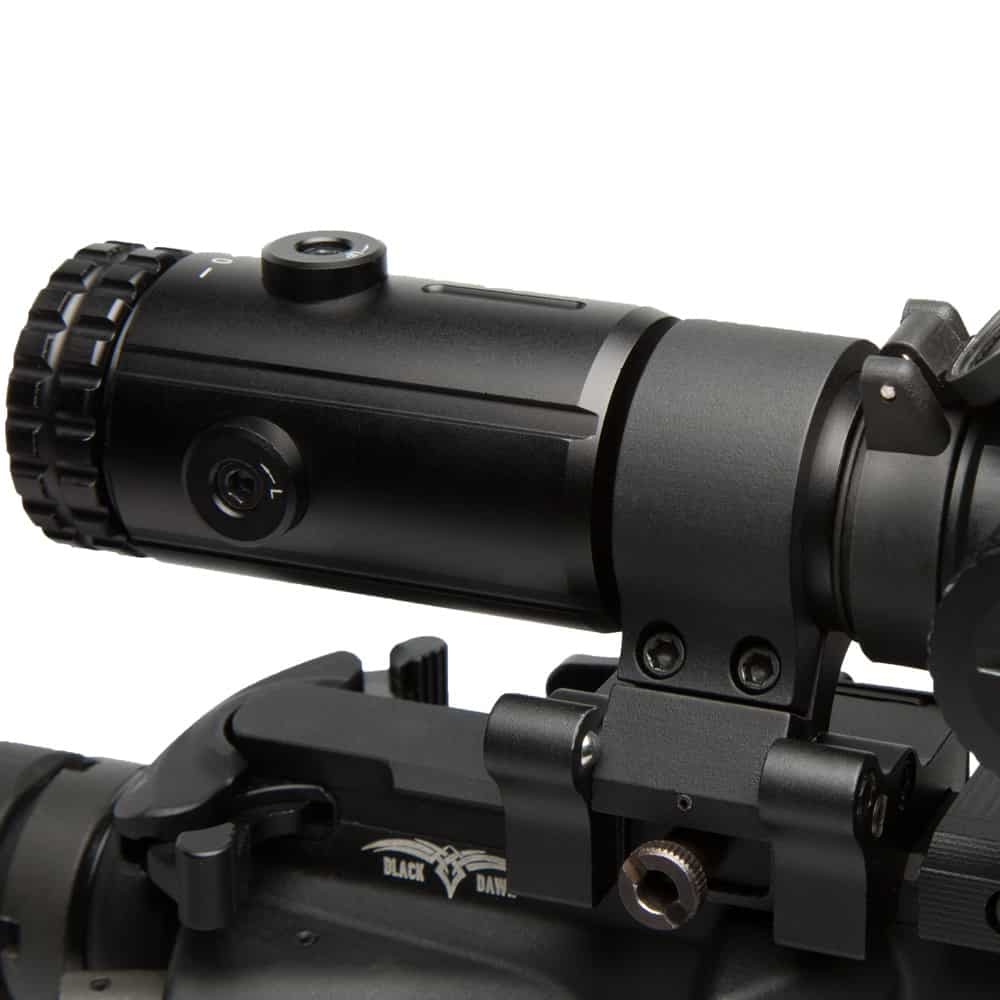

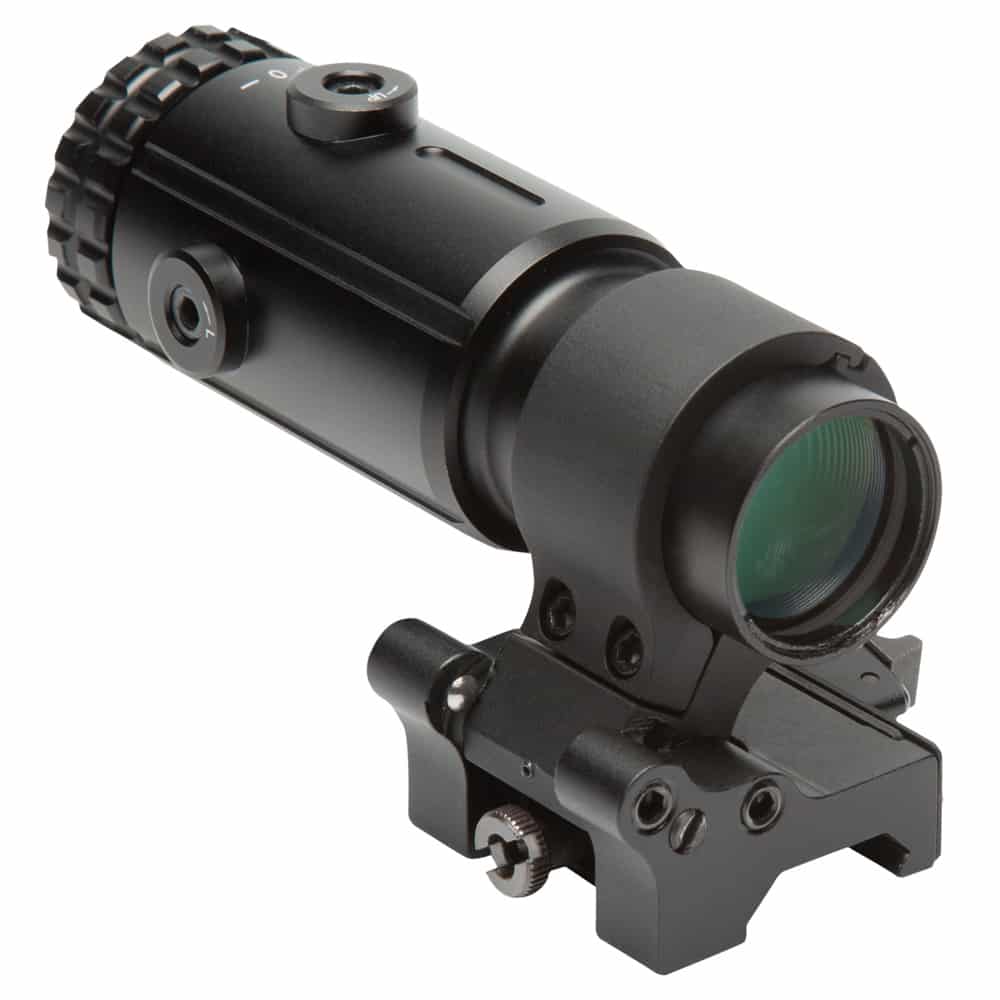

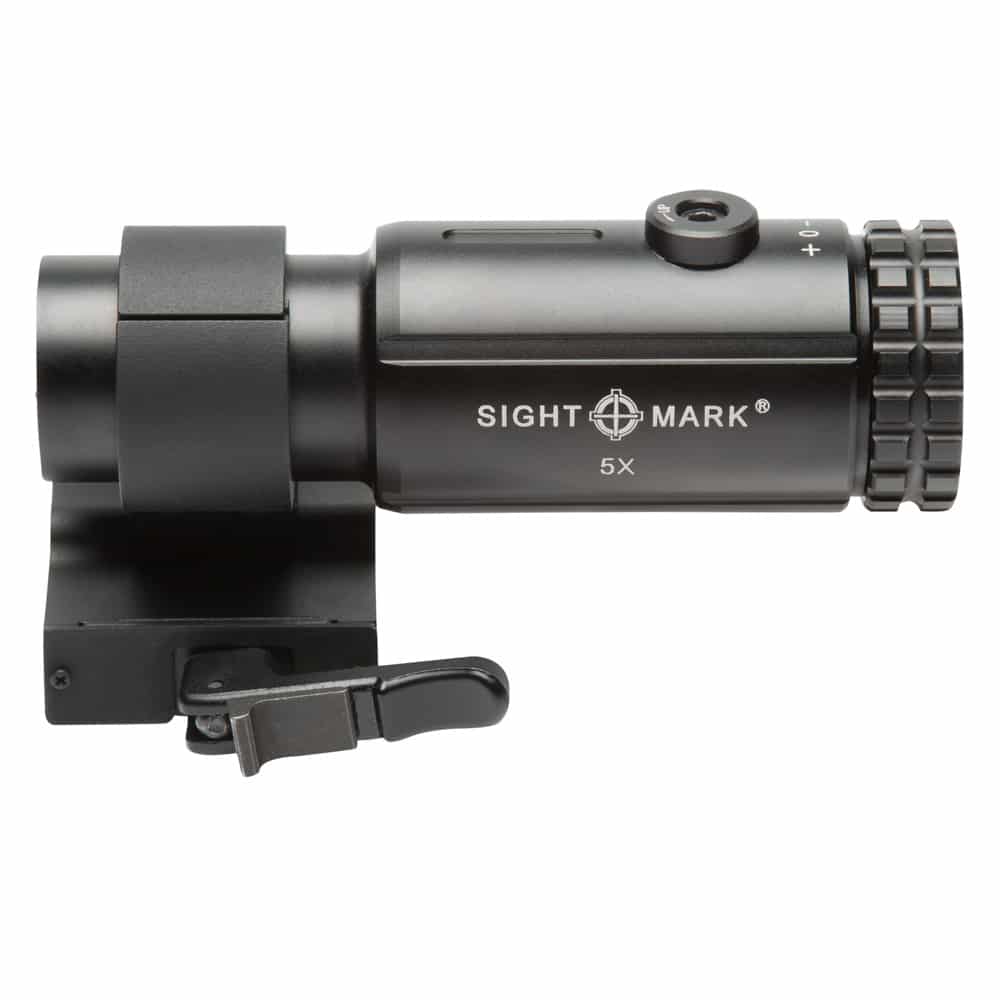

Helping shooters accurately extend the range of their reflex or red dot sight, new T-3 (SM19063) and T-5 (SM19064) Magnifiers provide 3x or 5x magnification in a straight tube optic system .7-.8” shorter than their predecessor. Perfect for AR platform firearms and specifically target shooting, 3 gun competitions and hunting applications, T-3 and T-5 Magnifiers feature a locking quick detach and flip-to-side mount, allowing rapid transition between the magnifier and accompanying sight.  An advanced, streamlined, low-drag design prevents the magnifier from snagging on vests and equipment. External windage and elevation adjustments make aligning the center of the magnifier’s point-of-view to the reticle extremely easy. Fully multi-coated optics improve brightness and resolution, increasing target and POI recognition. Both weighing less than 11 oz., T-3 and T-5 Magnifiers provide an effortless and effective way to increase optical magnification without sacrificing the advantages of a close quarters reflex/red dot sight.  These magnifiers are compatible with most reflex and red dot sights on the market, including Sightmark Element, Wolverine and Ultra Shot models. IP55 water resistant and recoil rated up to .308, Sightmark T-3 and T-5 Magnifiers include flip-to-side LQD mount, adjustment tools and a manual.

Features:

  • Locking, quick detach mount for quick and easy removal
  • Flip-to-side mount provides rapid transition between optical systems
  • Fully multi-coated, scratch resistant
  • External windage/elevation adjustment for reticle alignment
  • Increases magnification of accompanying sights for greater engagement range
  • EOTech® and Aimpoint® compatible
  • Aluminum construction

Products overview video:

Product Specifications For T-3:

Magnification 3x
Diameter, Objective Lens 23 mm
Diameter, Eyepiece 1.26/32 in/mm
Diameter, Exit Pupil 7.6 mm
Eye relief (in/mm) 2.25/57 in/mm
Field of view, m@100m 14.43
Field of view, ft@100yd 43.3
Diopter Adjustment +3 to -3
Diameter, Tube 30 mm
Maximum Recoil .308 Caliber
Shockproof Yes
Fog Proof No
IP Rating (waterproof) IP55 - water resistant
Finish/Color Matte black
Body Material Aluminum
Lens Coating Full Multi-coated
Mount Type Picatinny
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 4 / 103 in/mm
Width (in/mm) 2.6 / 66.2 in/mm
Height (in/mm) 1.67 / 42.5 in/mm
Weight, oz 10.6 oz.

Product Specifications For T-5:

Magnification 5x
Objective Lens 23 mm
Diameter, Eyepiece 1.26/32 in/mm
Diameter, Exit Pupil 4.6 mm
Eye relief (in/mm) 2.25/57 in/mm
Field of view, m@100m 9.8
Field of view, ft@100yd 29.6
Diopter Adjustment +3 to -3
Diameter, Tube 30 mm
Maximum Recoil .308 Caliber
Shockproof Yes
Fog Proof No
IP Rating (waterproof) IP55 - water resistant
Finish/Color Matte black
Body Material Aluminum
Lens Coating Full Multi-coated
Mount Type Picatinny
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 4.72 / 120 in/mm
Width (in/mm) 2.6 / 66.2 in/mm
Height (in/mm) 1.67 / 42.5 in/mm
