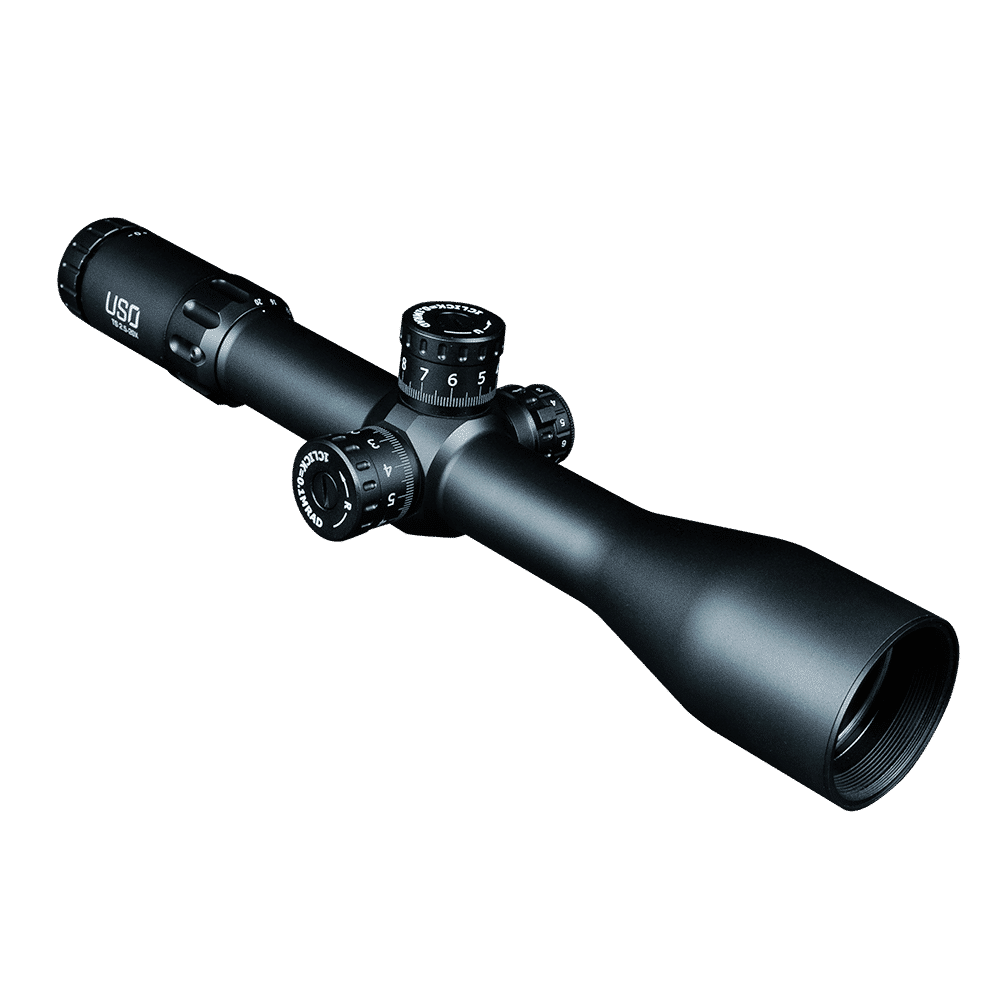

TS-20X GENIIXR US Optics 2.5-20x50mm Riflescope W/ First Focal GENIIXR Reticle (MIL)

TS-20X GENIIXR US Optics 2.5-20x50mm Riflescope W/ First Focal GENIIXR Reticle (MIL)

The USO TS-20X riflescope is built to meet the rigorous demands of long-range hunters and precision competitors. Whether you are gearing up your production class PRS Rifle or custom building your precision hunting rig, the TS-20X will help you maximize your rifle’s performance capabilities. It’s wide range magnification and parallax adjustment allows you to dial down to 2.5 power for up close shots, and dial up to 20 power when you need to reach out past 1,000 yds. It’s top tier optical system, rugged 34mm aluminum body, zero stop, and ample amounts of elevation and windage travel will ensure that you are more than ready for your next endeavor.

Specifications:

Magnification: 2.5 – 20x
Diopter: +2/-3
Exit Pupil Diameter: 2.5mm @ 20X
20mm @ 2.5X
Parallax Adjustment: 10 yds – Infinity
20X Field of View @ 100 meters = 2.2 meters
12X Field of View @ 100 meters = 3.8 meters
3X Field of View @ 100 meters = 11.3 meters
2.5X Field of View @ 100 meters = 14 meters
Eye Relief: 2-3 inches
Obj. Lens Diameter: 50mm
Tube Diameter: 34mm
Overall Length: 14.64 in
Ocular Lens Diameter: 34mm
Weight: 0.815 kg
Reticle Illumination: Red
Battery: CR 2032
Finish Color: Type III Hard Anodized Matte Black
Elevation Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
Elevation Travel: 32 mils total travel;
24.3 mils of travel on 30 MOA down
When the Optional Zero Stop is set, adjustments are limited to 9.5 MILS/23.75 MOA
Windage Knob: 1/10 mil (for MIL Reticles) / 1/4 MOA (for MOA Reticles)
Windage Adjustment Range: 30 mils of total 15L/15R

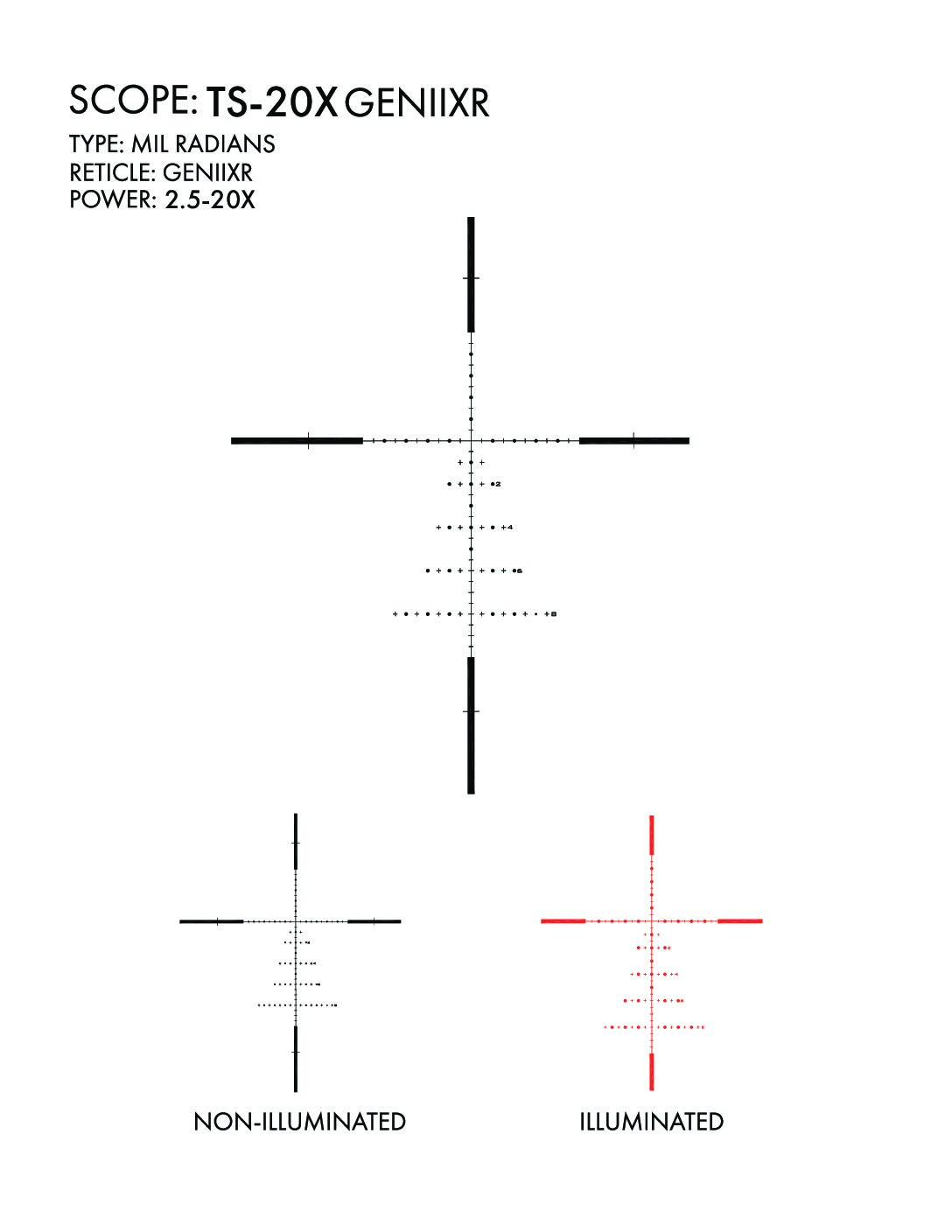

Reticle: First Focal Plane GENIIXR / MDMOA / JVCR / MGR
