This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.
$1,539.99
This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The glass-etched reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting
Optical Features |
|
| XD™ Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-etched Reticle | Protected between two layers of glass for optimum durability and reliability. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
Construction Features |
|
| Tube Size | 30 mm diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |

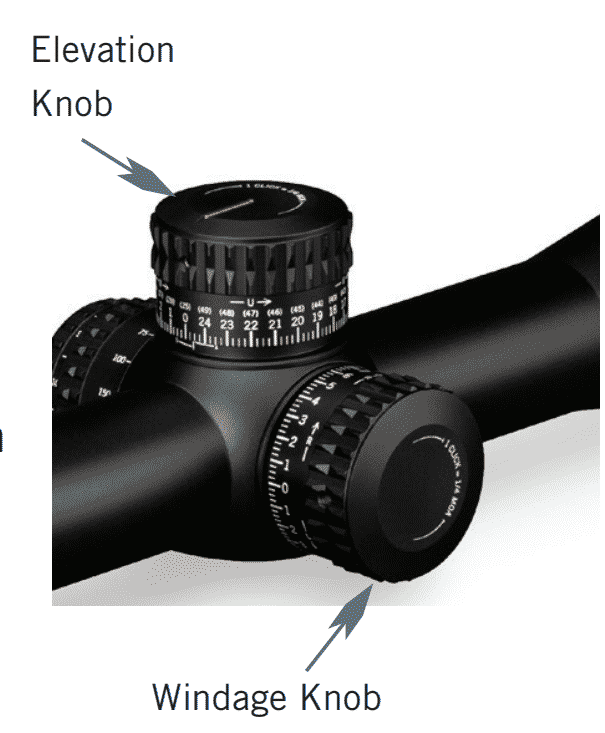

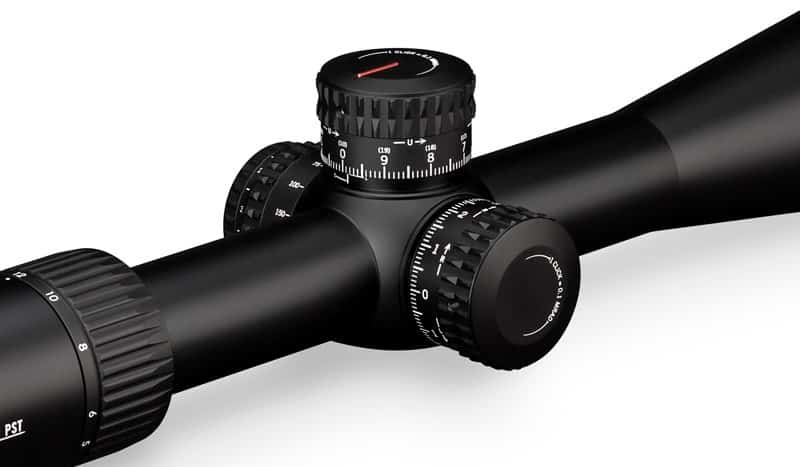

| Tactical-Style Turrets | Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
Internal Mechanism Design Features |
|
| RZR Zero Stop | Zero Stop mechanism prevents the turret from dialing below sight-in range. Download directions on How to set the Zero Stop. |
| Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features |
|
| Radius Bar | Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879 |

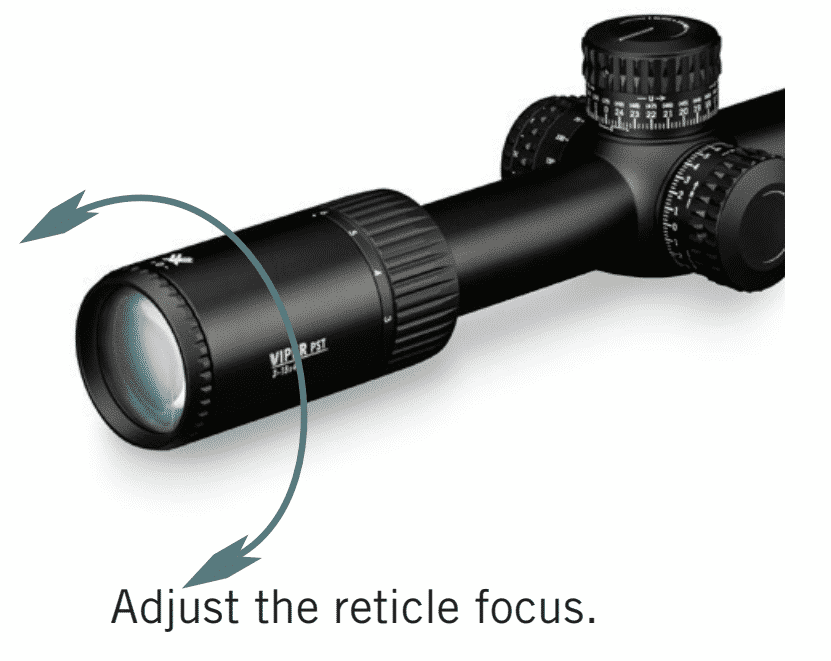

| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Built-In Accuracy Features | Matching (MRAD or MOA) turrets and reticles facilitate fast and accurate shooting at extended ranges. The patented fiber optic Radius Bar visually assists tracking turret rotations. US Patent 7,937,879 |
| Magnification | 5-25 x |
| Objective Lens Diameter | 50 mm |
| Eye Relief | 3.4 in |
| Field of View | 24.1-4.8 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Tactical RZR Zero Stop |
| Adjustment Graduation | .1 MRAD |
| Travel per Rotation | 10 MRAD |
| Max Elevation Adjustment | 20 MRAD |
| Max Windage Adjustment | 10 MRAD |
| Parallax Setting | 25 yards to Infinity |
| Length | 16 inches |
| Weight | 31.2 |
| Product Manual (PDF) | Download |
| Product Manual 2 (PDF) | Download |
| Lengths | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 16.0 | 2.25 | 2.50 | 6.85 | 5.6 | 3.75 |
| Heights | |
| H1 | H2 |
| 2.3 | 1.8 |
Dimensions measured in inches.

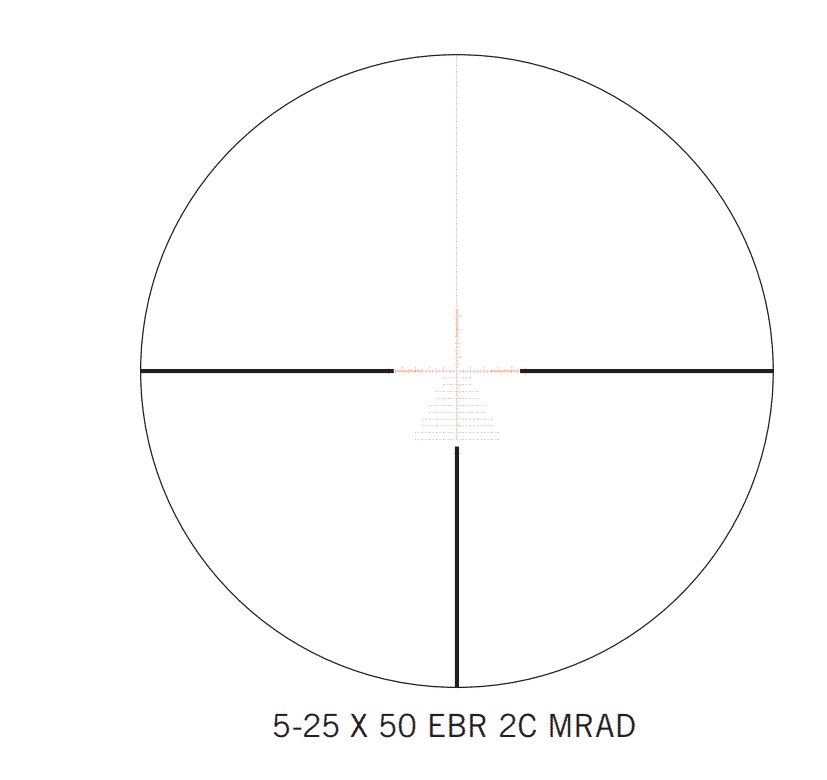

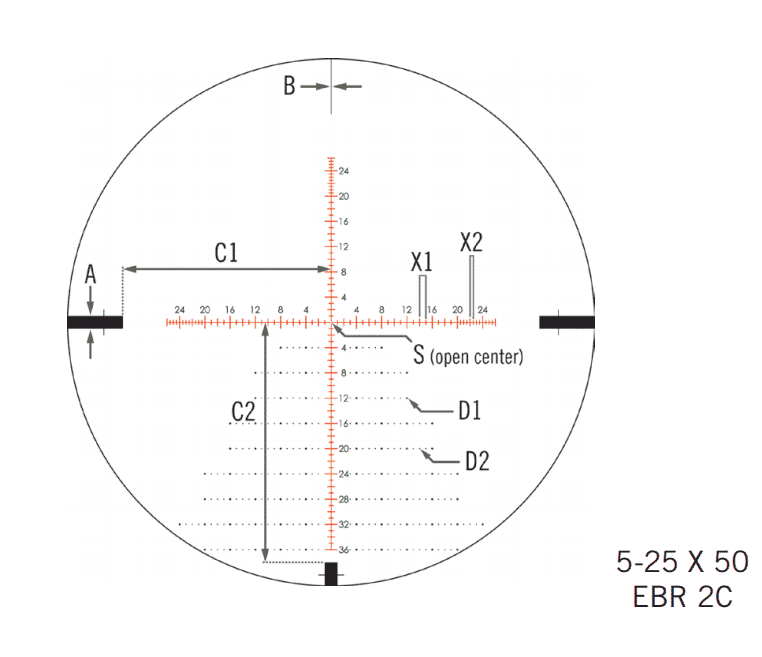

Hash-marked ranging reticle using MOA or MRAD based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.
