$378.35

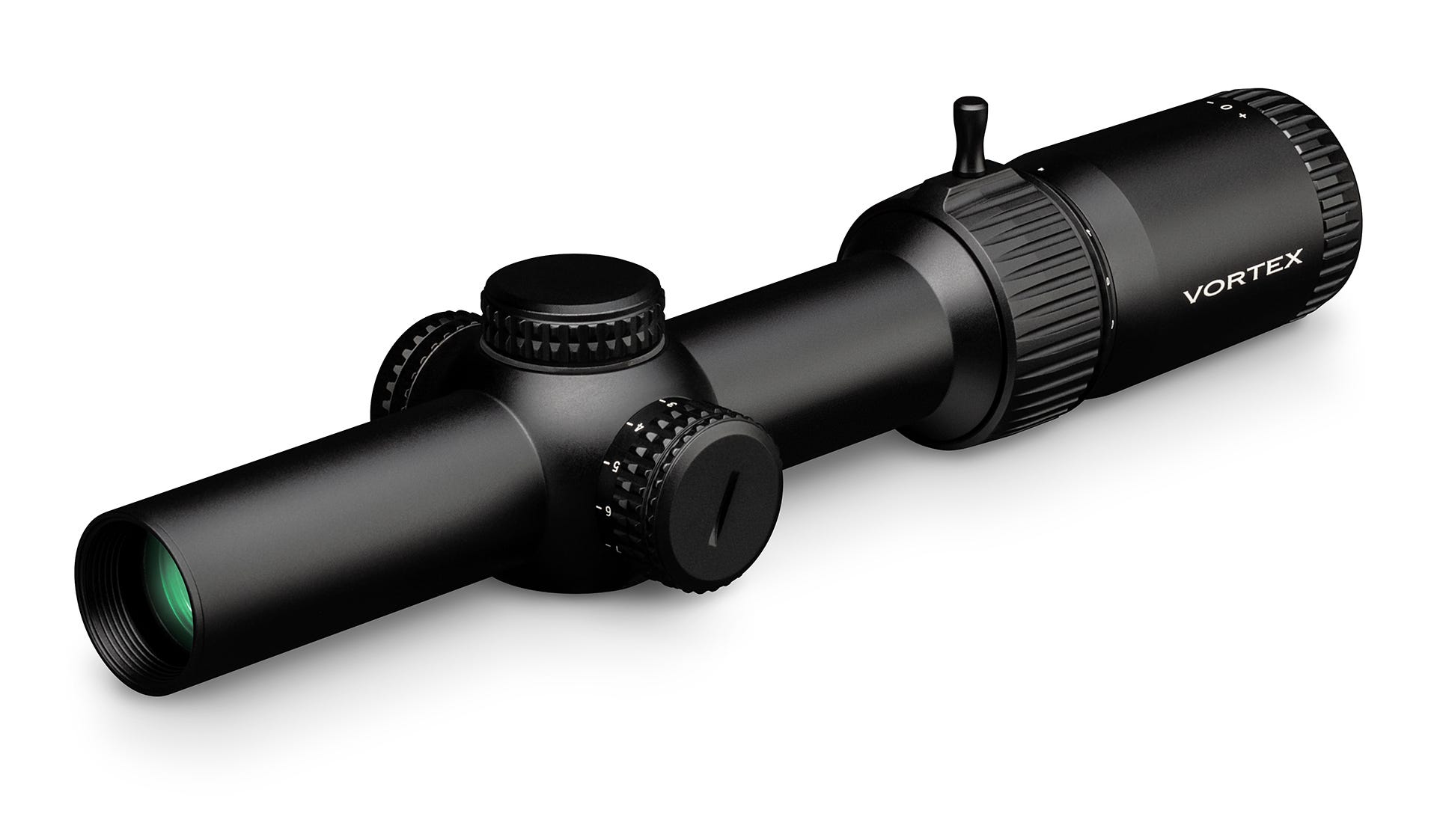

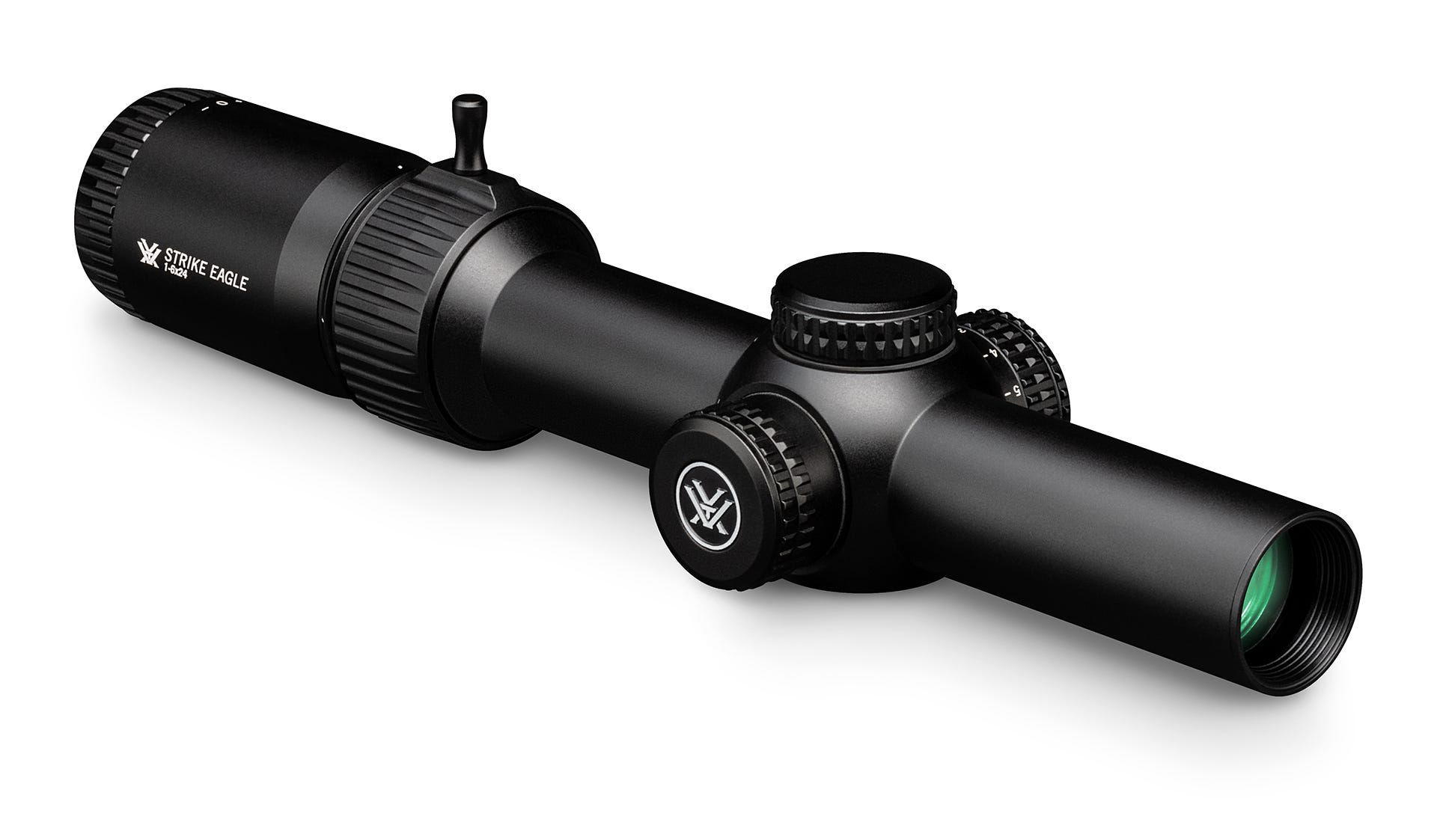

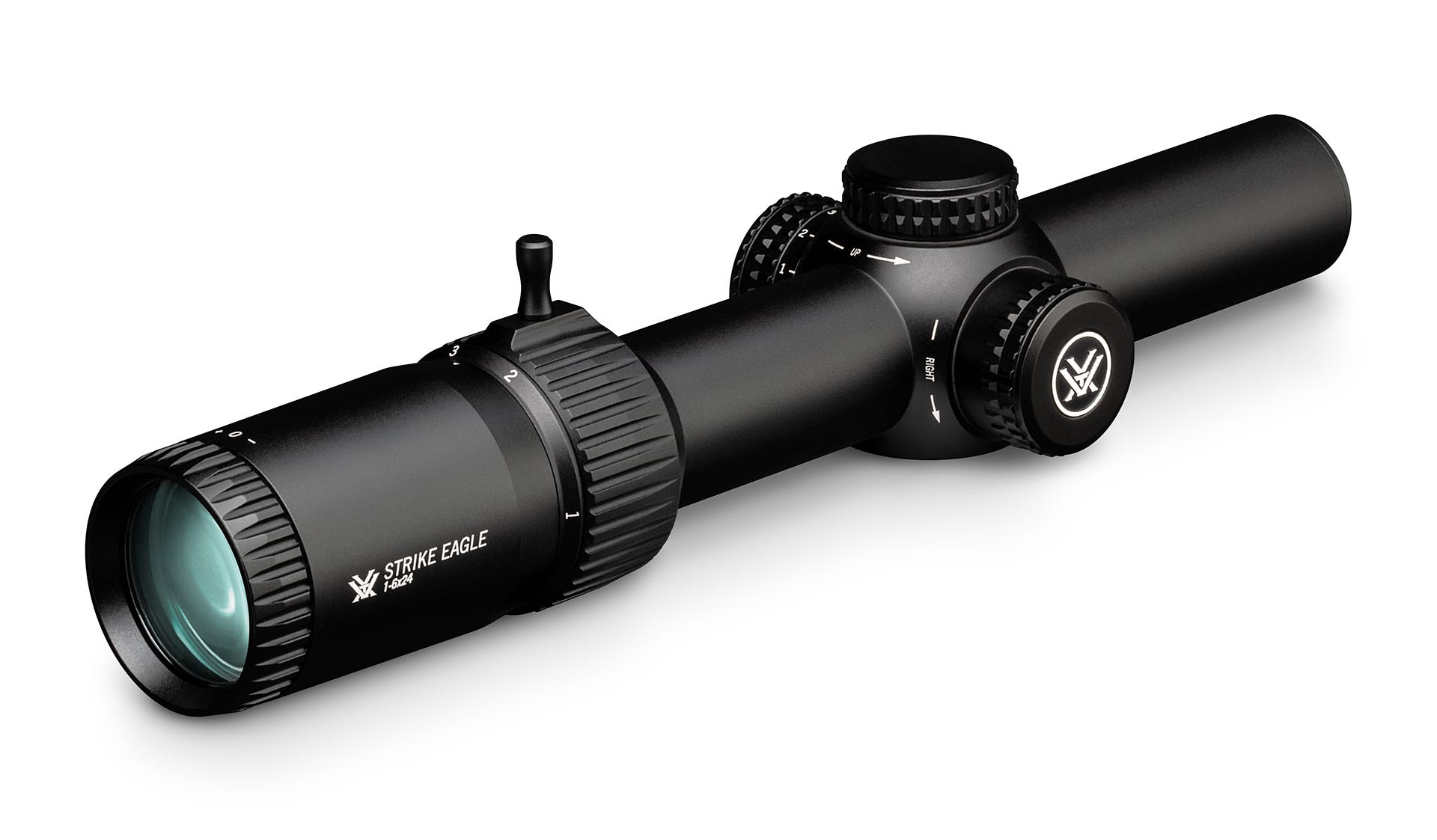

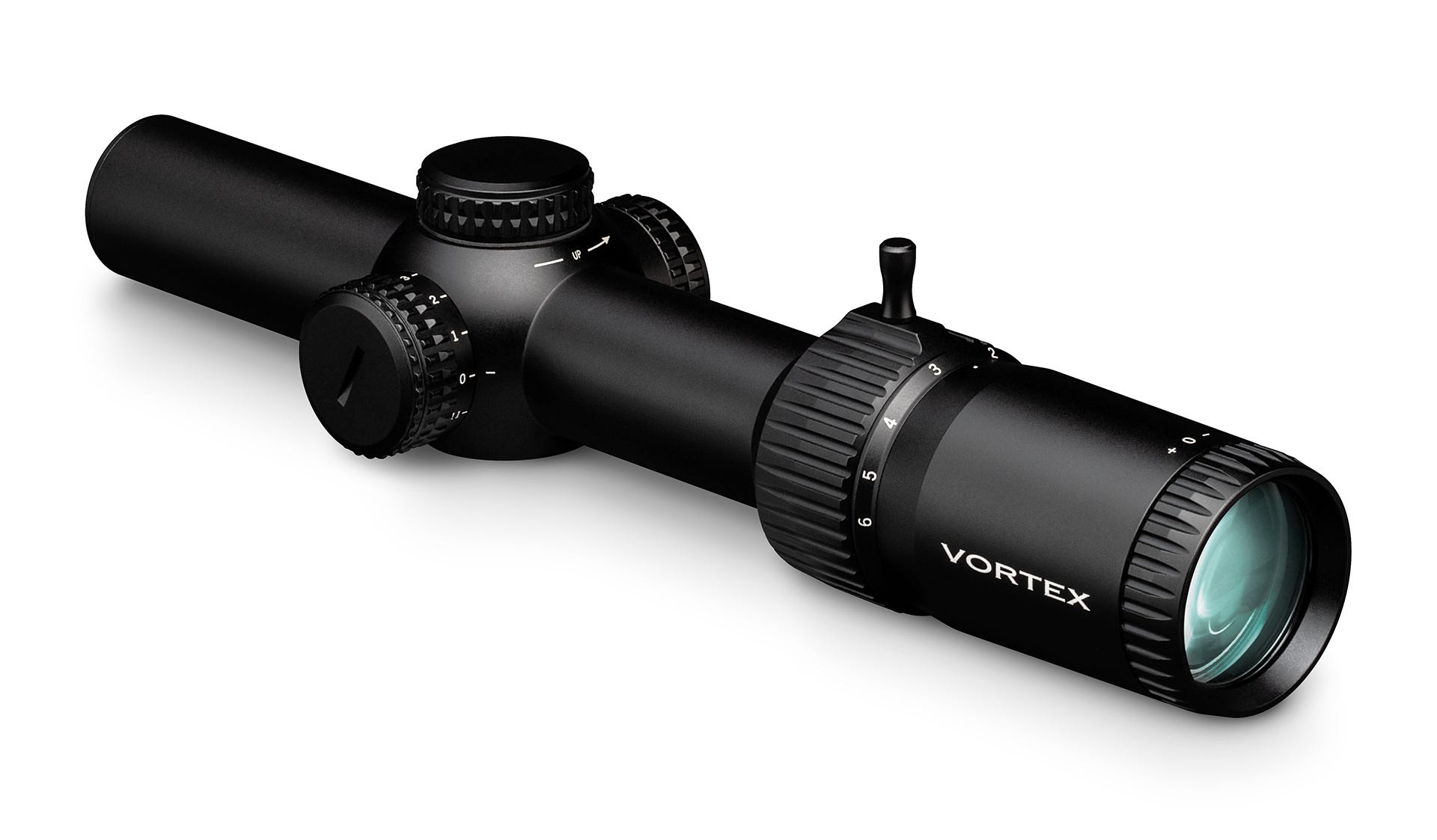

Optimize the versatility and quick-handling attributes of your AR with the redesigned Strike Eagle. A true 1x on the low end, Strike Eagle zooms to let shooters rapidly engage targets near and far, and an AR-BDC3 reticle aids in rapid shooting while providing holdover and ranging references from 0-600 yards. Plus, with a thread-in throw lever, you?ll be on target even faster, shot after shot.
SE-1624-2 Optical Features:
| Illuminated Reticle | Provides precise aiming under low-light conditions |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
SE-1624-2 Construction Features:
| ArmorTek ? | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Waterproof - IPX7 | Designed to meet IPX7 waterproofing standards. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
SE-1624-2 Convenience Features:
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
SE-1624-2 Specifications:
| Magnification | 1-6x |
| Objective Lens Diameter | 24 mm |
| Eye Relief | 3.5 inches |
| Field of View | 116.5-19.2 ft @100 yds |
| Tube Size | 30 mm |
| Turret Style | Low Capped |
| Adjustment Graduation | 1/2 MOA |
| Travel Per Rotation | 44 MOA |
| Max Elevation Adjustment | 140 MOA |
| Max Windage Adjustment | 140 MOA |
| Parallax Setting | Fixed @100 yds |
| Length | 10.5 inches |
| Weight | 18.5 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
SE-1624-2 Included In the Box:
| LENGTHS | |||||
| L1 | L2 | L3 | L4 | L6 | |
| 10.5 | 2.9 | 2.1 | 6.6 | 3.9 | |
**Dimensions measured in inches.
| HEIGHTS | |
| H1 | H2 |
| 1.2 | 1.7 |
**Dimensions measured in inches.
AR-BDC3 RETICLE:
The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA center dot provides a precise point of aim while the surrounding 18 MOA horseshoe gets your eye into the center faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.
Subtension detail for Strike Eagle 1-6x24 riflescope with AR-BDC3 reticle.
