$824.95
When you're ready to step up your long-distance game, the Strike Eagle gives you more of the tools you need for less than you'd expect. Start with excellent edge-to-edge sharpness, and add a first focal plane (FFP) illuminated reticle for fast reads at any magnification and lighting situation. Add in our RevStop Zero System for a hard return to zero, and locking turrets for fast, stay-put adjustments. Build it around a 34mm tube that accommodates massive amounts of elevation and windage travel, and a throw lever for rapid magnification changes, and you've got a long-distance impact machine that'll have you wondering how you ever shot without it.

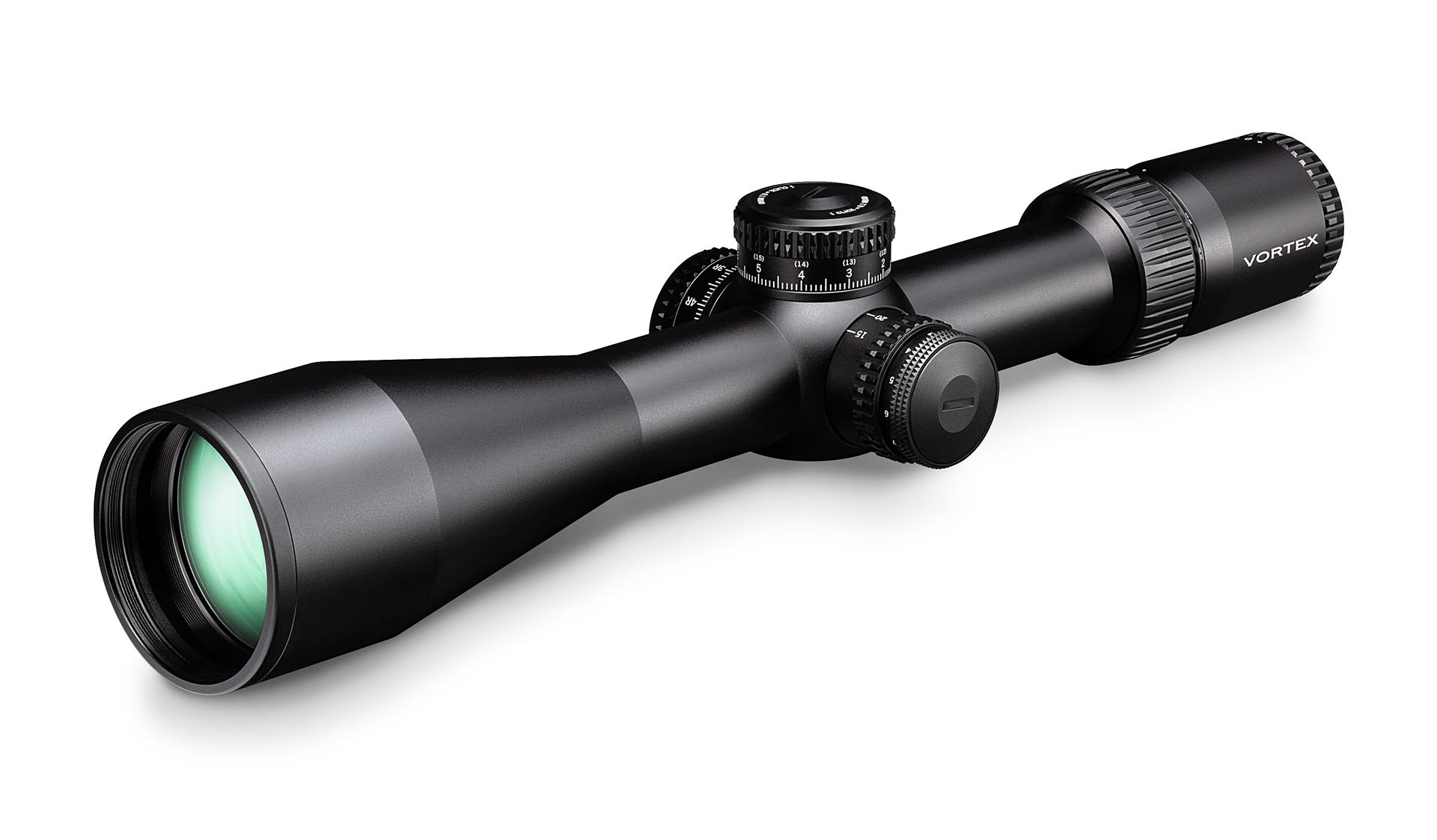

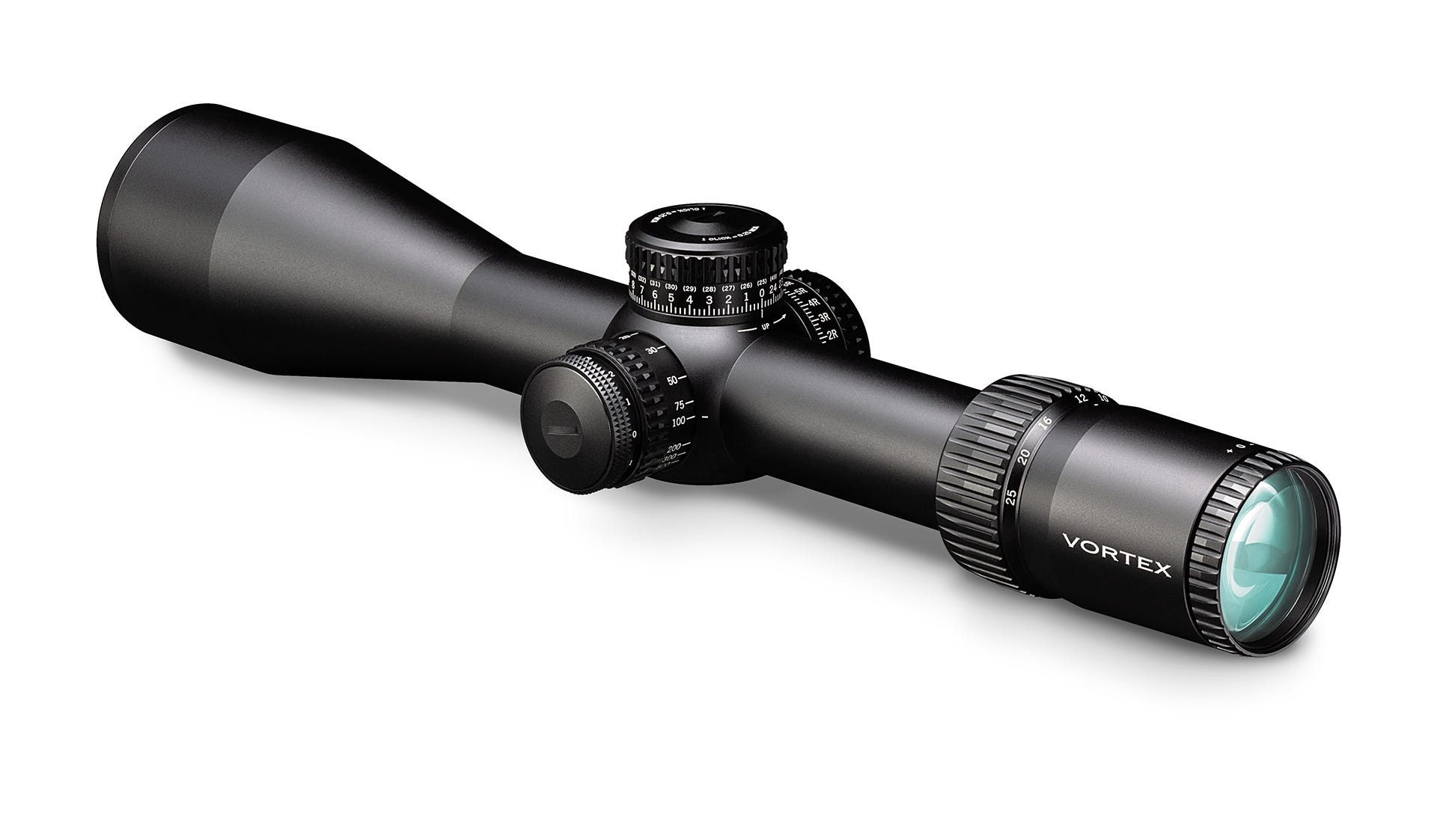

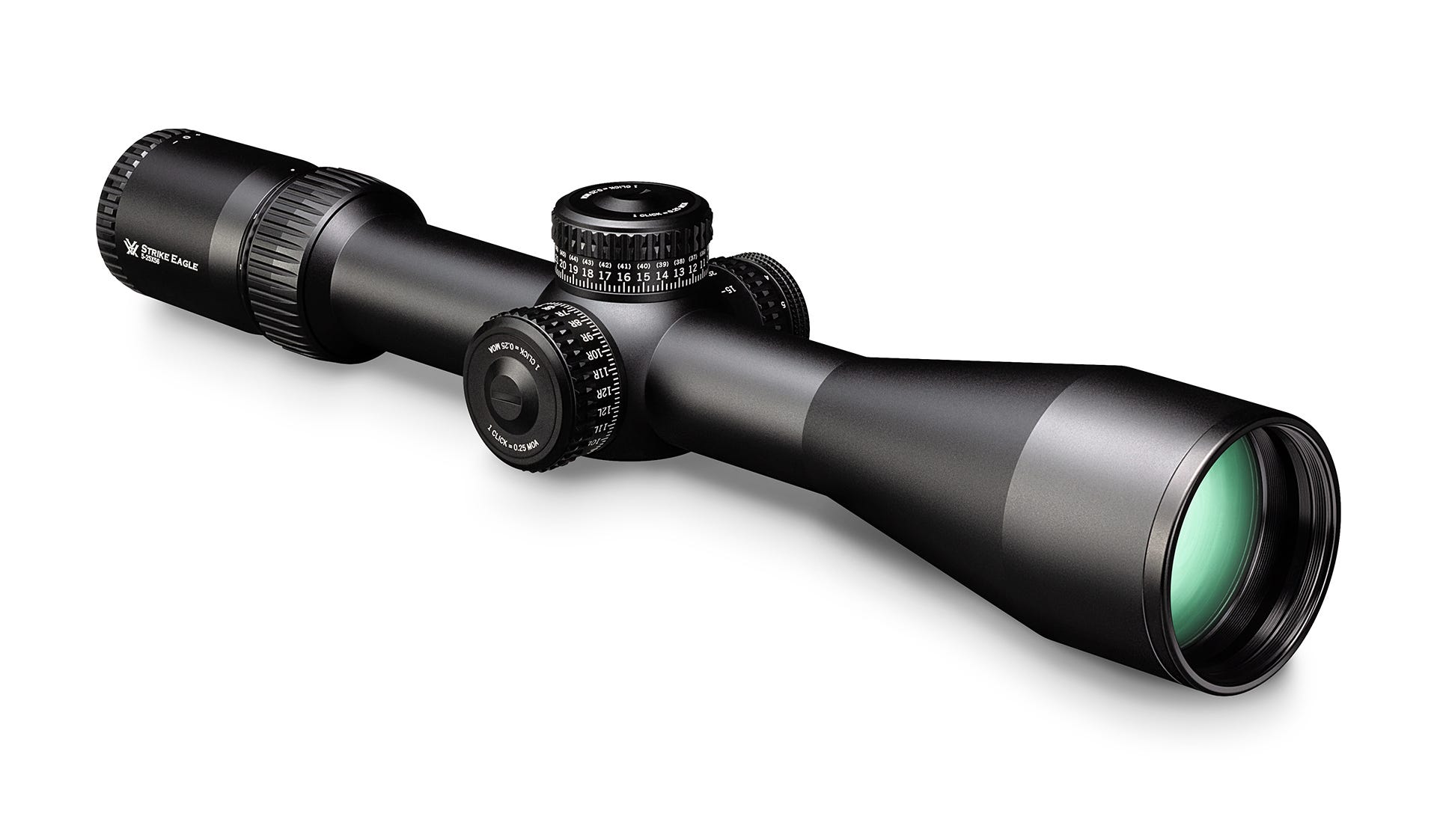

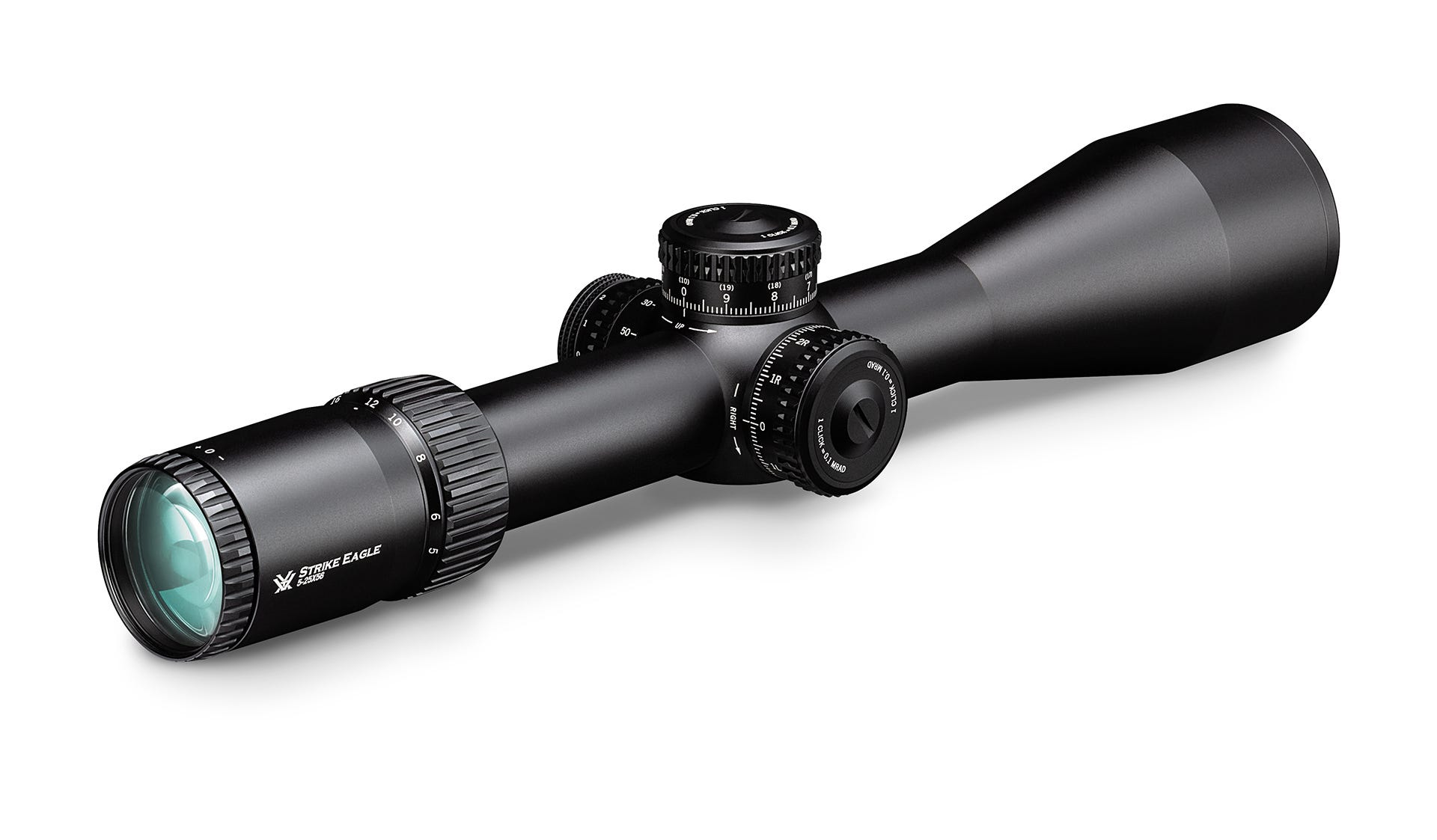

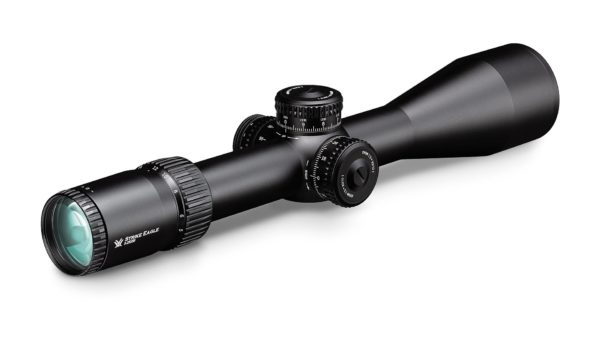

Introducing the Strike Eagle? 5-25x56 FFP. Featuring the RevStop? Zero System for easy return to zero, exposed locking turrets and illuminated first focal plane reticle, the Strike Eagle 5-25x56 gives tactically-minded shooters all the tools they need to dominate the long range game.
SE-52503 Optical Features:
| XD? Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| Glass-Etched Reticle | ?Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
SE-52503 Construction Features:
| ArmorTek ? | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Tube Size | 34 mm diameter provides maximized internal adjustment and strength. |
| Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Tactical Locking Turrets | Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. |
SE-52503 Convenience Features:
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
| RevStop? Zero System | Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments. |
SE-52503 Specifications:
| Magnification | 5-25x |
| Objective Lens Diameter | 56 mm |
| Eye Relief | 3.7 inches |
| Field of View | 24.0 - 5.2 ft @100 yds |
| Tube Size | 34 mm |
| Elevation Turret Style | Locking/Zero Stop |
| Windage Turret Style | Locking |
| Adjustment Graduation | 1/4 MOA |
| Travel Per Rotation | 25 MOA |
| Max Elevation Adjustment | 110 MOA |
| Max Windage Adjustment | 78 MOA |
| Parallax Setting | 15 yards to infinity |
| Length | 14.6 inches |
| Weight | 30.4 oz |
| Product Manual (PDF) | Download |
| Reticle Manual (PDF) | Download |
| LENGTHS | ||||||
| L1 | L2 | L3 | L4 | L5 | L6 | |
| 14.6 | 2.0 | 2.6 | 6.4 | 4.75 | 3.6 | |
**Dimensions measured in inches.
| HEIGHTS | |
| H1 | H2 |
| 2.5 | 1.8 |
**Dimensions measured in inches.
EBR-7C (MOA) RETICLE:
Hash-marked reticle using MOA or MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below..
Subtension detail for Strike Eagle 5-25x56 riflescope with EBR-7C MOA reticle.
